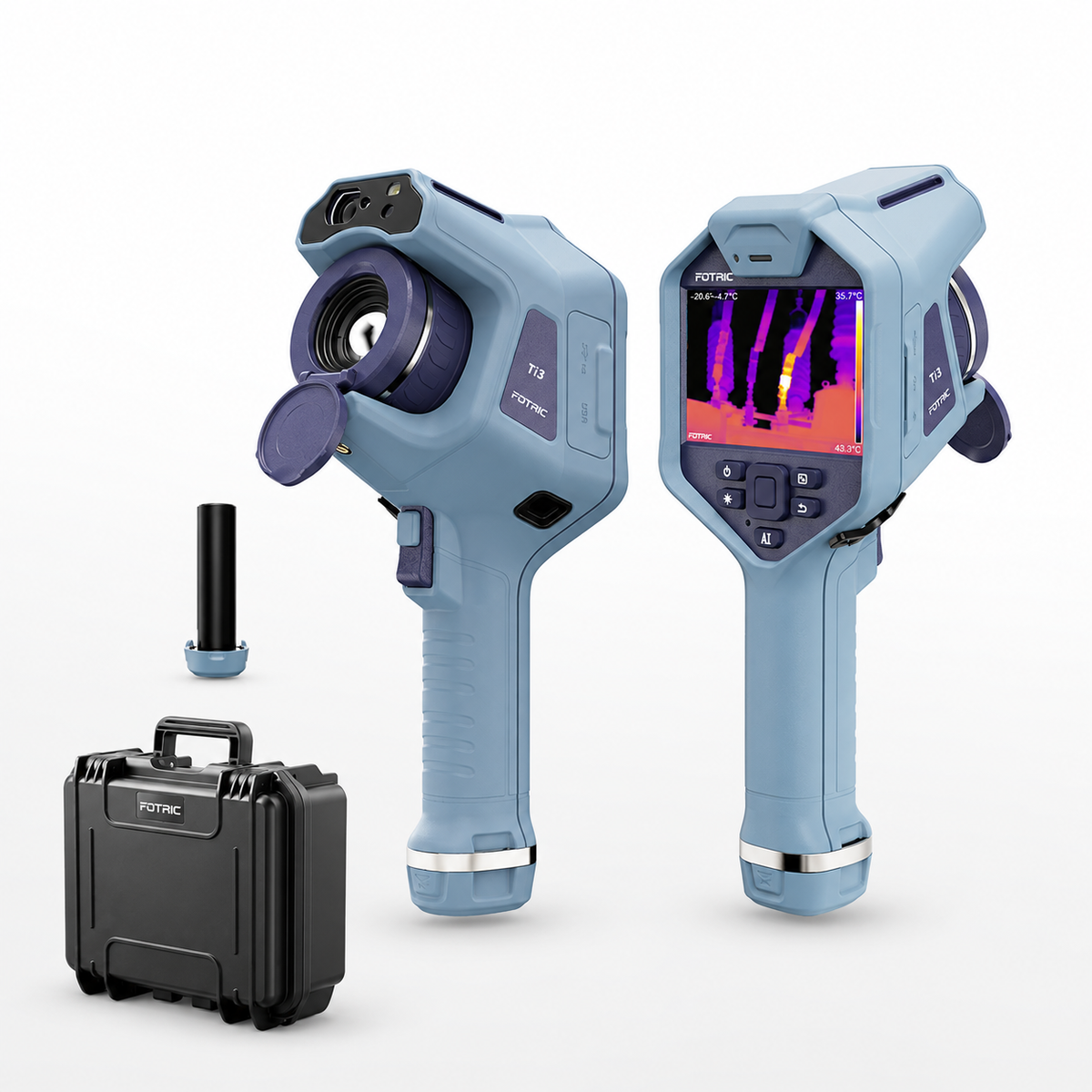

FOTRIC Ti3 Thermal Imaging Camera

£2,169.99
£2,169.99
✓ Local VAT Included. Free shipping. Discounts calculated at checkout.
FOTRIC Store offer
Save 20% on this product
Copy code Add to cart Apply at checkout
FOTRIC20
Find overheating components and decide where to inspect next with the FOTRIC Ti3. TurboFocus helps you capture clear thermal images of electrical panels, motors, and HVAC equipment, while on-device analysis and PC reporting tools help you explain findings and plan maintenance.

Description

  • Find Problems Before They Disrupt Your Work

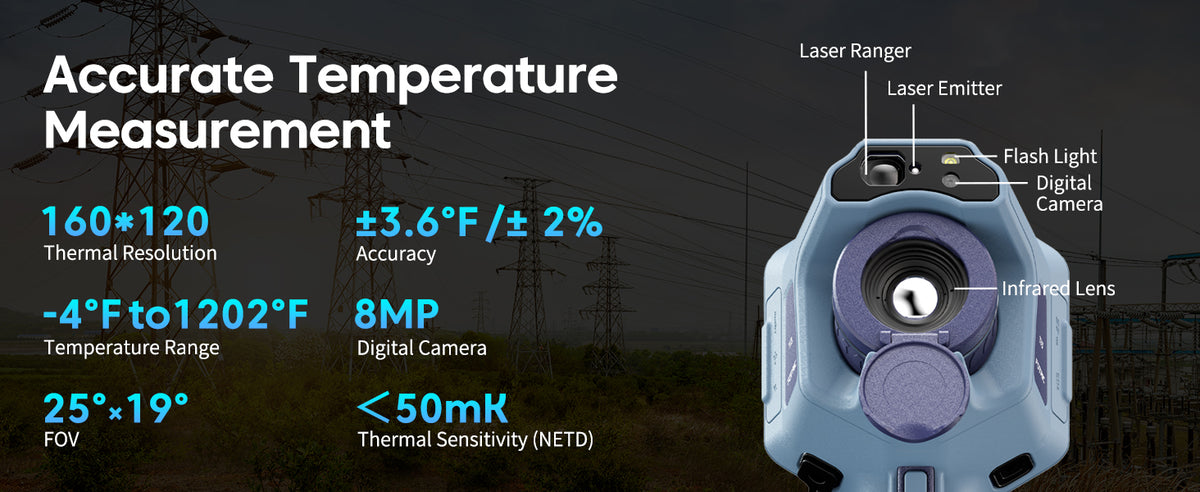

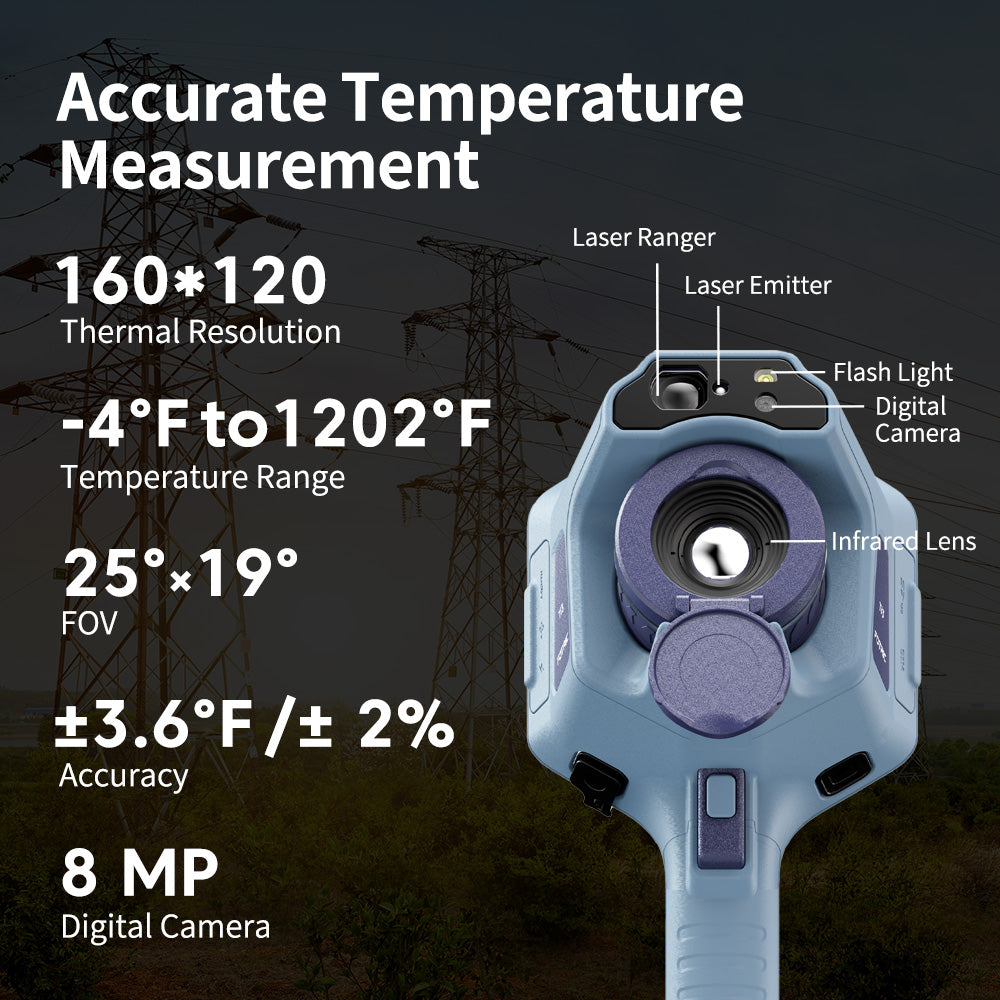

    Identify unusual heat patterns in electrical systems, mechanical equipment, and HVAC to help prioritize maintenance and reduce the risk of unexpected downtime. FOTRIC Ti3 measures temperatures from -20°C to 650°C (-4°F to 1202°F), with <50 mK thermal sensitivity and measurement accuracy of ±2°C (±3.6°F) or 2%.

  • Get Clear Images with Less Manual Adjustment

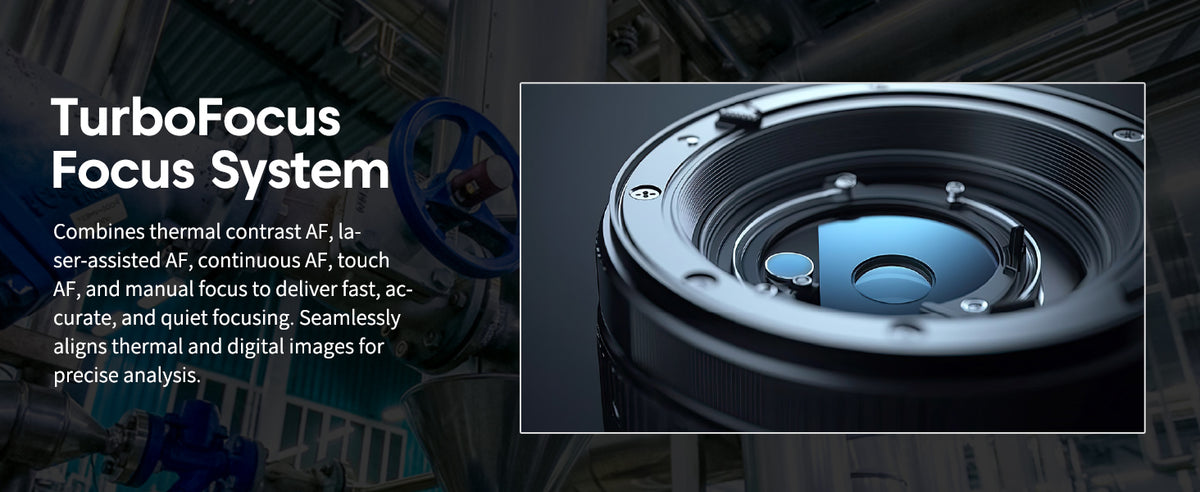

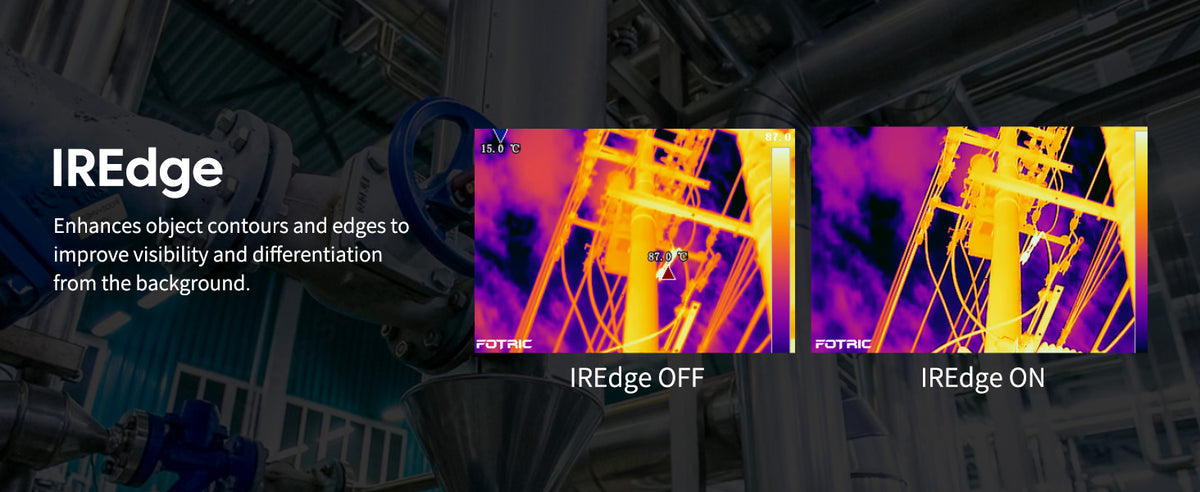

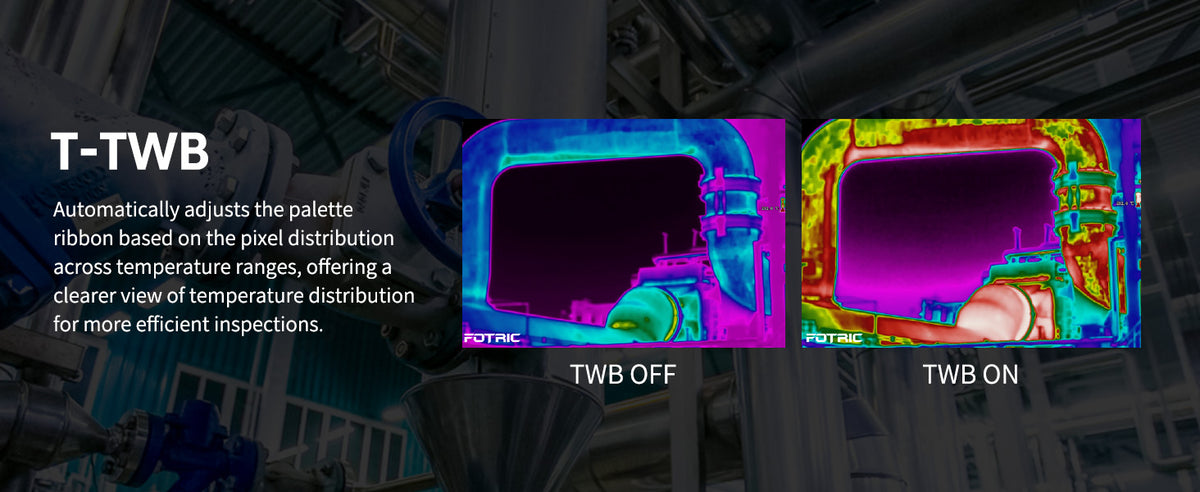

    Move between inspection targets with TurboFocus, offering laser-assisted, contrast, continuous, and touch autofocus. IREdge enhances object outlines, while T-TWB adjusts the color palette to make temperature patterns easier to interpret—helping you locate and document areas that need attention.

  • Put Thermal Findings in Context
    Use the 8 MP visible-light camera to show where a thermal concern sits within the equipment or building you are inspecting. Laser-assisted length and area measurement, with a distance range up to 50 m, adds useful context when documenting affected surfaces and planning follow-up work.

  • Review on Site and Simplify Reporting

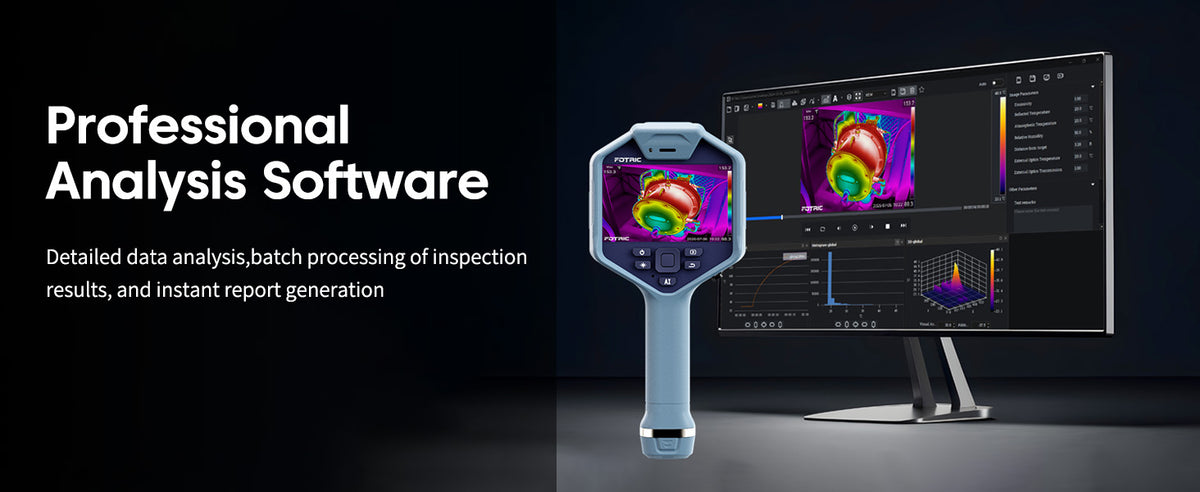

    Check images on the 5-inch touchscreen and bookmark important findings for quick review before leaving the site. Included AnalyzIR PC software supports detailed analysis, batch processing, and report creation, helping you turn inspection results into clear information for customers and maintenance teams.

  • Keep Working Through Demanding Inspections
    IP54 dust and splash protection and 2-meter drop resistance help Ti3 handle everyday field conditions. Two included rechargeable batteries provide at least 4 hours of operation each, allowing you to swap batteries and continue longer inspection rounds. A two-bay charging dock helps you prepare both batteries for the next job.

  • Arrive Equipped and Keep Your Kit Organized
    The kit includes the FOTRIC Ti3 thermal camera, two rechargeable batteries, a two-bay charging dock, a 64 GB SD card, a power adapter, and connection cables. A portable soft bag and hard carrying case make it easier to carry, store, and protect your equipment between jobs.
Tech Specs Show More Show Less
IR Resolution
160 × 120
Temperature Range
-20°C to 650°C (-4°F to 1202°F)
Focus System
TurboFocus Autofocus
Field of View
25° × 19°
Display
5-inch touchscreen
Battery Runtime
≥4 hours per battery
What's Included Show More Show Less
  • 1 ×FOTRIC Ti3 Thermal Imaging Camera
  • 2 ×Rechargeable Batteries
  • 1 ×Two-Bay Charging Dock
  • 1 ×Power Adapter
  • 1 ×USB Type-C to USB Cable
  • 1 ×Micro HDMI to HDMI Cable
  • 1 ×64 GB SD Card
  • 1 ×SD Card Reader
  • 1 ×Accessory Bag
  • 1 ×Documentation Pack
  • 1 ×Portable Soft Bag
  • 1 ×Hard Carrying Case
Quantity:
FOTRIC Ti3 Thermal Imaging Camera
£1,735.99 £2,169.99 Save 20%

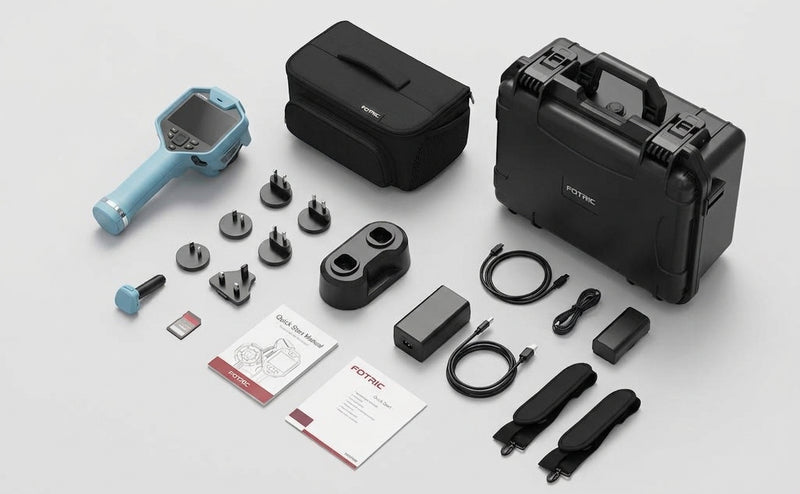

Everything You Need, Right Out of the Box

What's Included

  • FOTRIC Ti3 Thermal Imaging Camera
  • 2 Rechargeable Batteries
  • Two-Bay Charging Dock & Power Adapter
  • USB-C to USB & Micro HDMI to HDMI Cables
  • 64 GB SD Card & Card Reader
  • Accessory Bag & Documentation Pack
  • Portable Soft Bag & Hard Carrying Case

Technical Specifications

IR Resolution
160 × 120
Object Temperature Range
-4°F ~ 1202°F
Field of View (FOV)
25° × 19°
Thermal Sensitivity (NETD)
50 mK
Spatial Resolution (IFOV)
2.73 mrad
Focus Mode
TurboFocus
Display Size
5"
Digital Camera
8 MP
Super Resolution (SR)
Enhanced to 320 × 240
Image frame rate
30 Hz
Aperture
Not specified on datasheet
Focusing method
0.1 m
Minimum registration / alignment distance
0.5 m
Optional lenses listed
L25 (stock); additional configs via sales
Measurement spots
4

Which model is right for you?

Swipe to compare more models

Which model is right for you?
You're viewing
FOTRIC Ti3
FOTRIC Ti3
View options

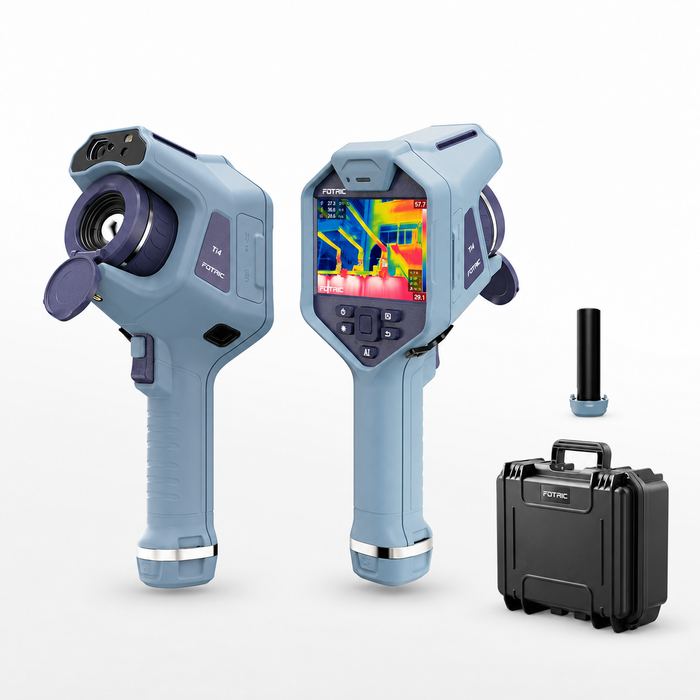

FOTRIC Ti4
FOTRIC Ti4
View product

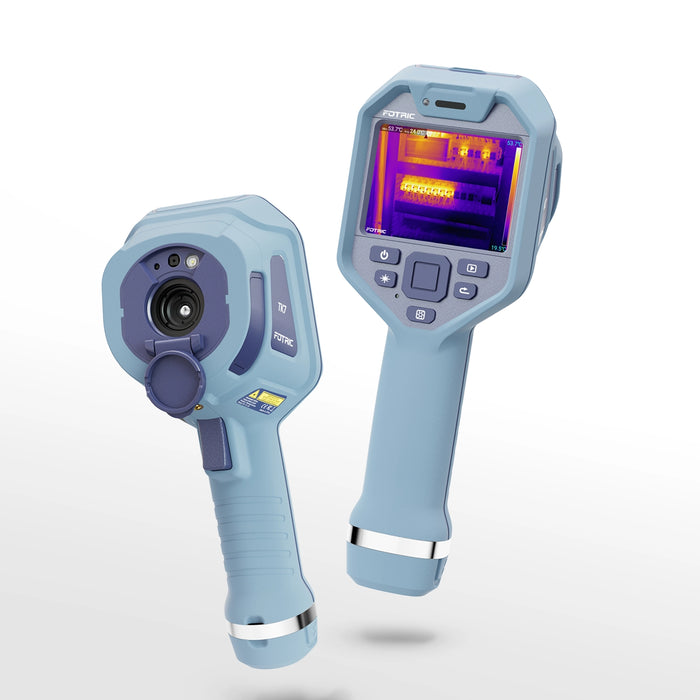

FOTRIC TK7
FOTRIC TK7
View product

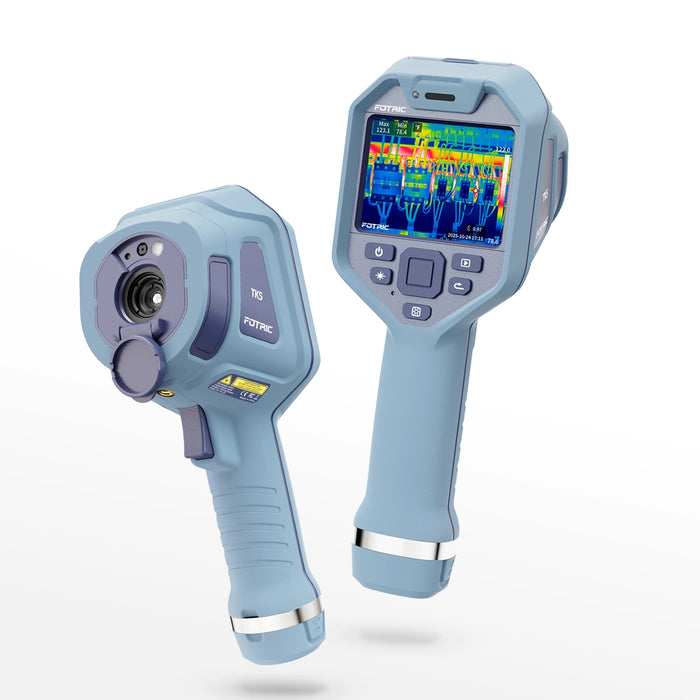

FOTRIC TK5
FOTRIC TK5
View product

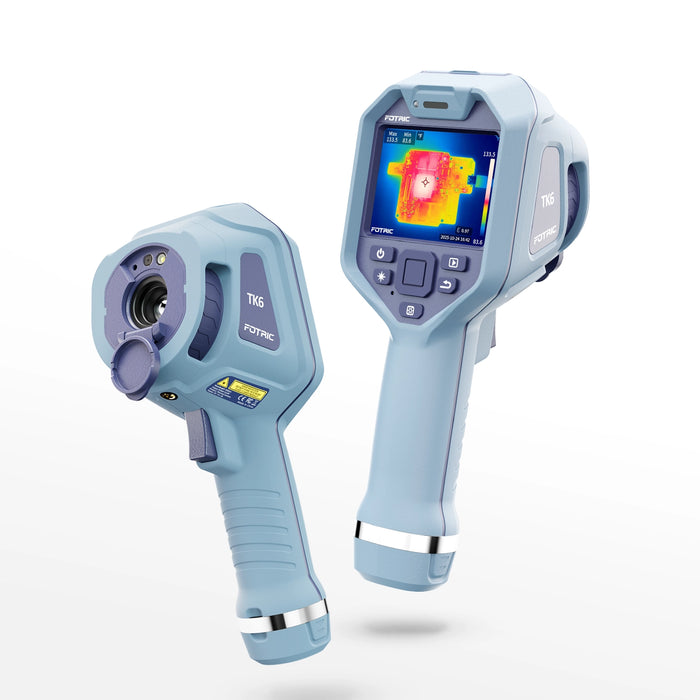

FOTRIC TK6
FOTRIC TK6
View product

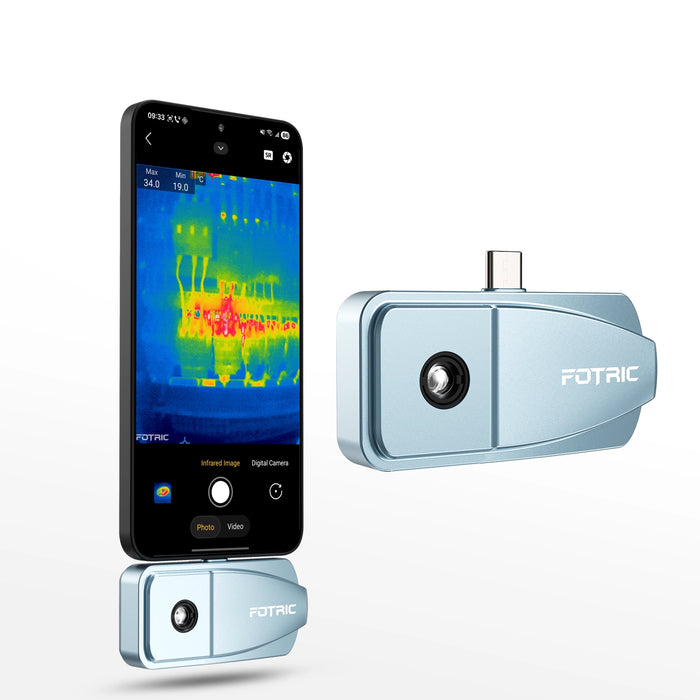

FOTRIC TP320A
FOTRIC TP320A
View product

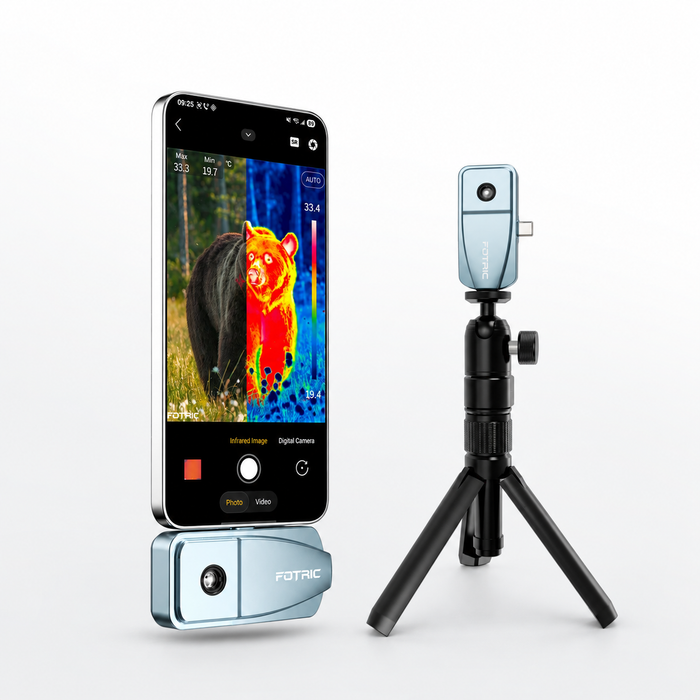

FOTRIC TP320 Camping
FOTRIC TP320 Camping
View product

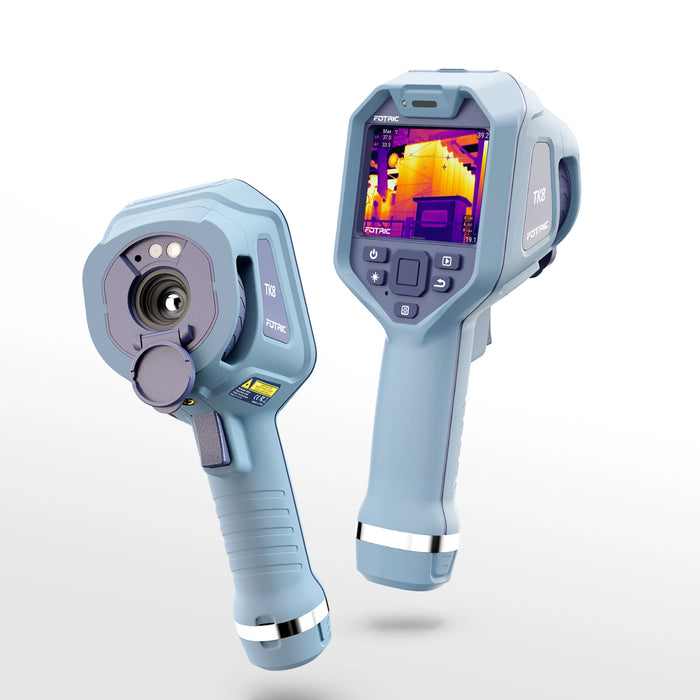

FOTRIC TK8
FOTRIC TK8
View product
Best for
HVACElectricalMechanical
HVACElectricalMechanical
HVACElectricalMechanical
HomeHVACElectrical
PCBElectricalMechanical
HomeHVACOutdoor
HomeHVACOutdoor
ElectricalMechanicalPCB
Price £2,169.99 GBP £2,549.99 GBP £1,919.99 GBP £699.99 GBP £769.99 GBP £319.99 GBP £319.99 GBP £2,549.99 GBP
IR Resolution 160 × 120 320 × 240 384 × 288 320 × 240 384 × 288 320 × 240 320 × 240 384 × 288
Object Temperature Range −4°F to 1202°F −4°F to 1202°F −4°F to 1022°F −4°F to 842°F −4°F to 1022°F −20°C to 550°C (−4°F to 1022°F) −20°C to 550°C (−4°F to 1022°F) −4°F to 1022°F
Field of View (FOV) 25° × 19° 44° × 33° 49° × 37° 49° × 37° 25° × 19° 60° × 45° 60° × 45° 25° × 19°
Thermal Sensitivity (NETD) 50 mK 40 mK 40 mK @ 30°C 40 mK 40 mK <35 mK @ 30°C <35 mK @ 30°C 40 mK @ 30°C
Focus Mode TurboFocus TurboFocus Focus-free Focus-free Manual Focus-free Focus-free Manual
Display Size 5" 5" 3.5-inch touchscreen 3.5" 3.5" Uses phone screen Uses phone screen 3.5-inch touchscreen
Digital Camera 8 MP 8 MP 8 MP 5 MP 5 MP Via phone Via phone 8 MP

FAQ

FAQ

Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.

View All Support Resources
What can I inspect with the FOTRIC Ti3?

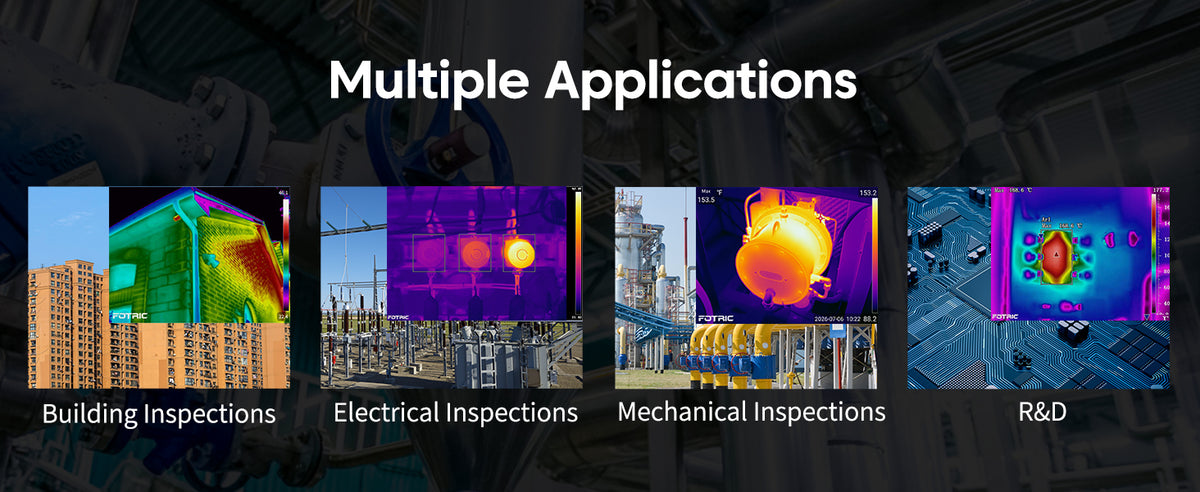

Use Ti3 to investigate overheating electrical connections, compare motor and bearing temperatures, check HVAC performance, and assess surface temperature patterns associated with building heat loss. Thermal images help you identify where further inspection is needed; they do not confirm the underlying fault on their own.

What is the thermal resolution, and does it support Super Resolution?

Ti3 has a native infrared resolution of 160 × 120 pixels and supports Super Resolution enhancement to 320 × 240. This helps make thermal patterns easier to view while keeping a clear distinction between the detector’s native resolution and the enhanced image.

What temperatures can it measure, and how accurate is it?

Ti3 measures from -20°C to 650°C (-4°F to 1202°F), with an accuracy of ±2°C (±3.6°F) or ±2% of the reading, whichever is greater, under specified conditions. The stated accuracy applies at ambient temperatures of 15–35°C, with target temperatures above 0°C and calibration at 1 m. Focus, surface emissivity, and reflections can also affect your readings.

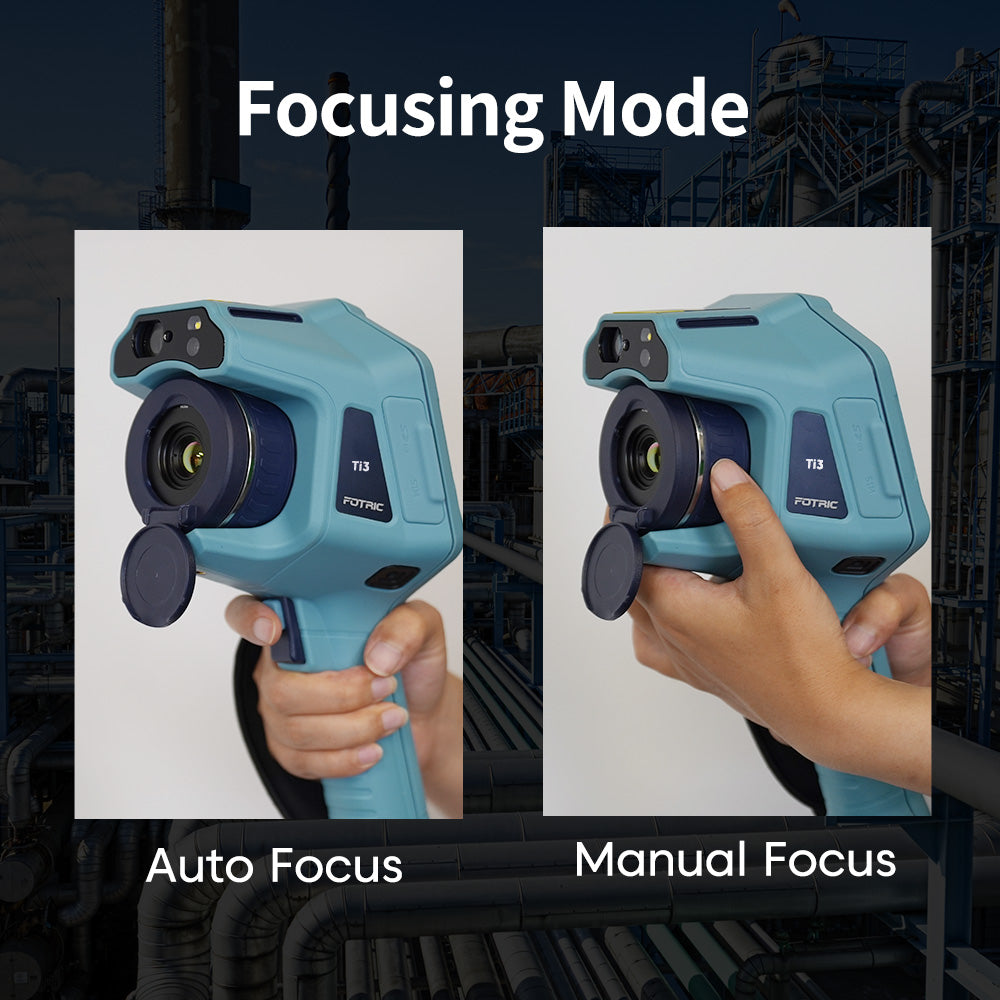

Do I need to focus manually before every inspection?

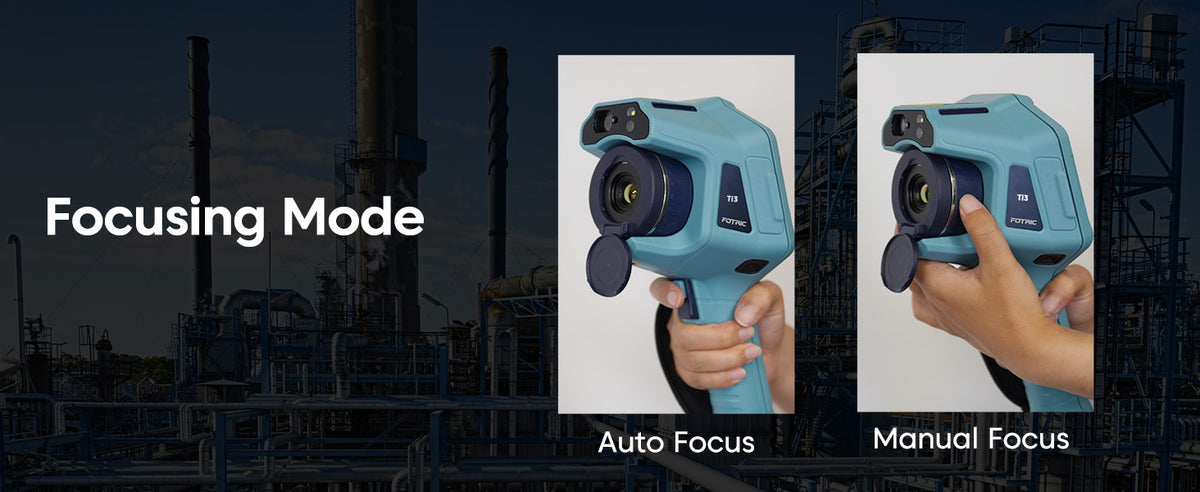

No. TurboFocus offers thermal contrast, laser-assisted, continuous, and touch autofocus, with manual focus available when you want more control. The 25° × 19° field of view helps you frame individual components, and the minimum imaging distance is 0.1 m. Minimum imaging distance does not mean every small target can be measured accurately at that distance.

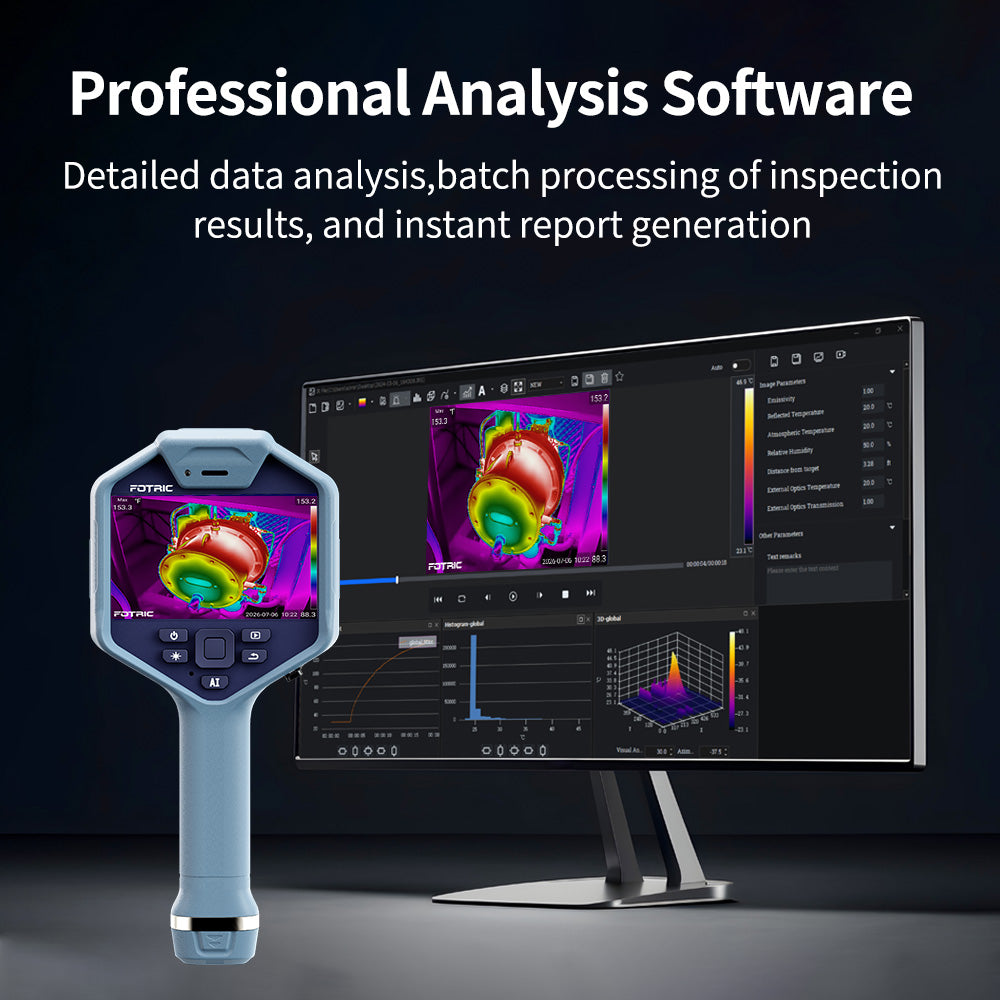

Can I review images on the camera and create reports on a computer?

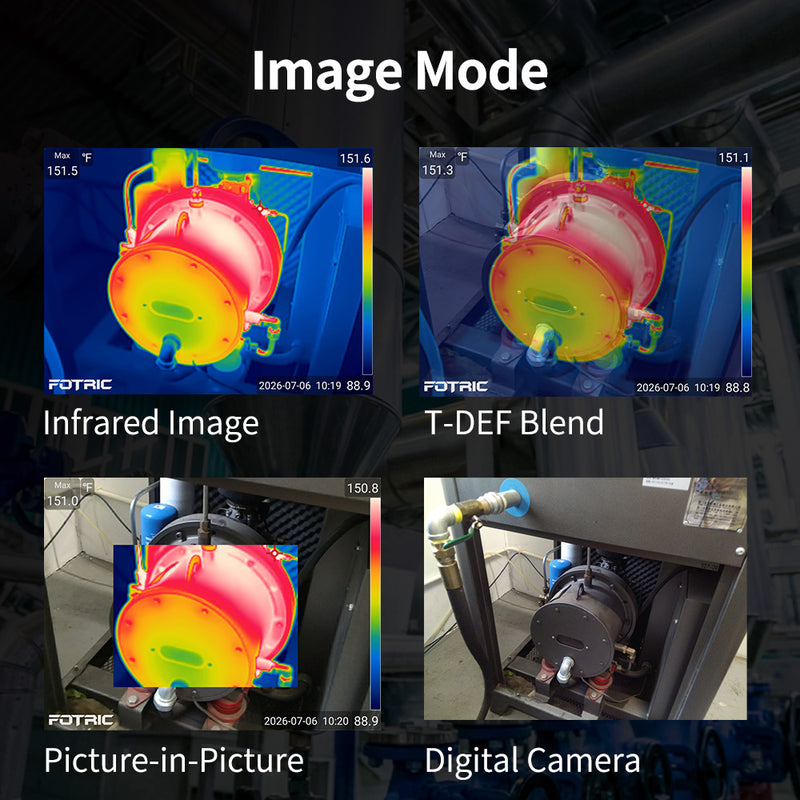

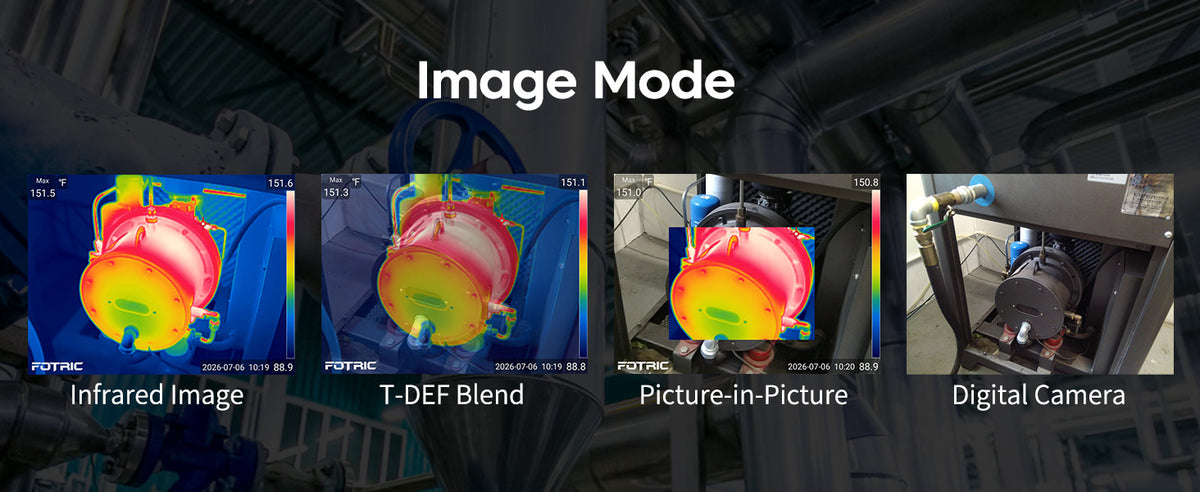

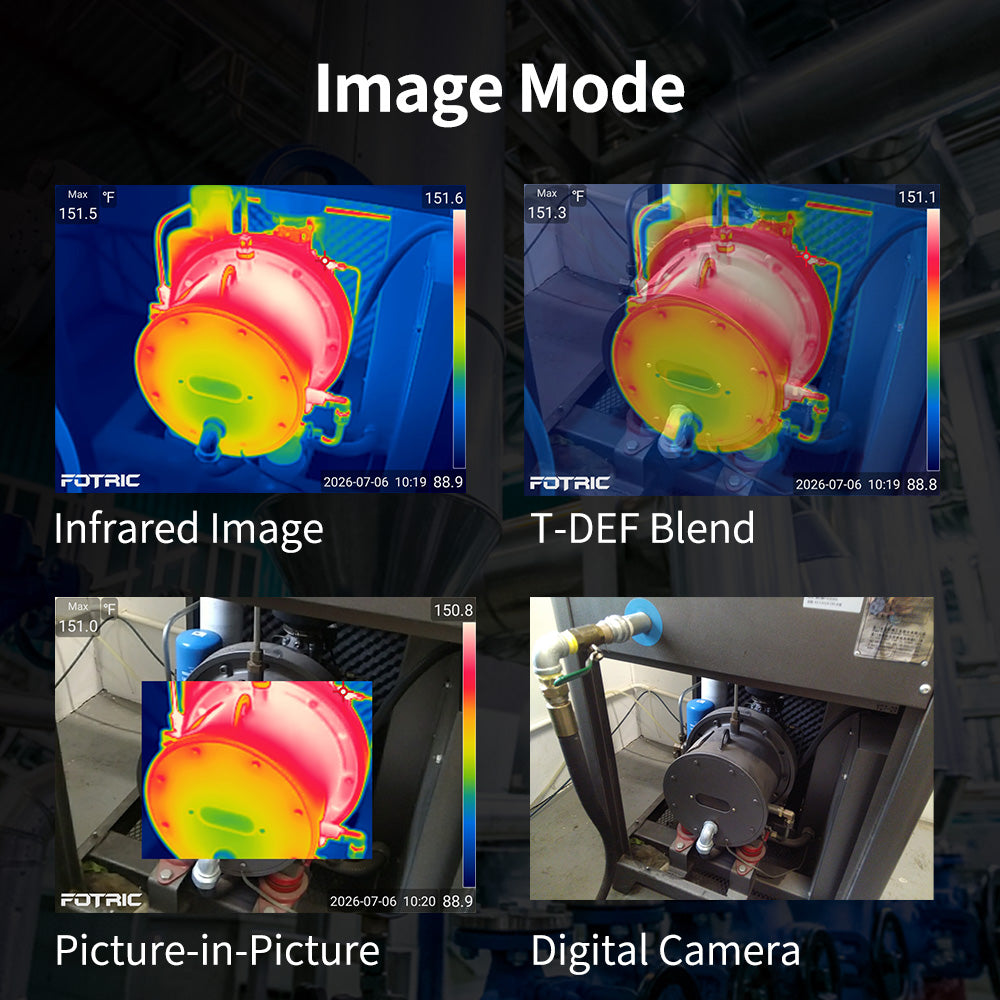

Yes. Review images and bookmark important findings on the 5-inch touchscreen before leaving the site. Thermal, visible-light, picture-in-picture, and T-DEF fusion views help you relate heat patterns to the equipment you are inspecting. Included AnalyzIR PC software supports further analysis, batch processing, and report creation for customers or maintenance teams.

How long does the battery last, and can I replace it?

Each rechargeable battery provides at least 4 hours of continuous operation under specified conditions. The kit includes two batteries and a two-bay charging dock, so you can carry a charged spare for longer inspection rounds. Actual runtime varies with settings and operating conditions.
