FOTRIC TP320A Portable Thermal Imaging Camera
£239.00
FOTRIC TP320A Portable Thermal Imaging Camera
- Regular price
- £239.00
- Sale price
- £239.00
- Regular price
-
Tax included.
Free shipping. Discounts calculated at checkout.
- High-Precision Thermal Imaging

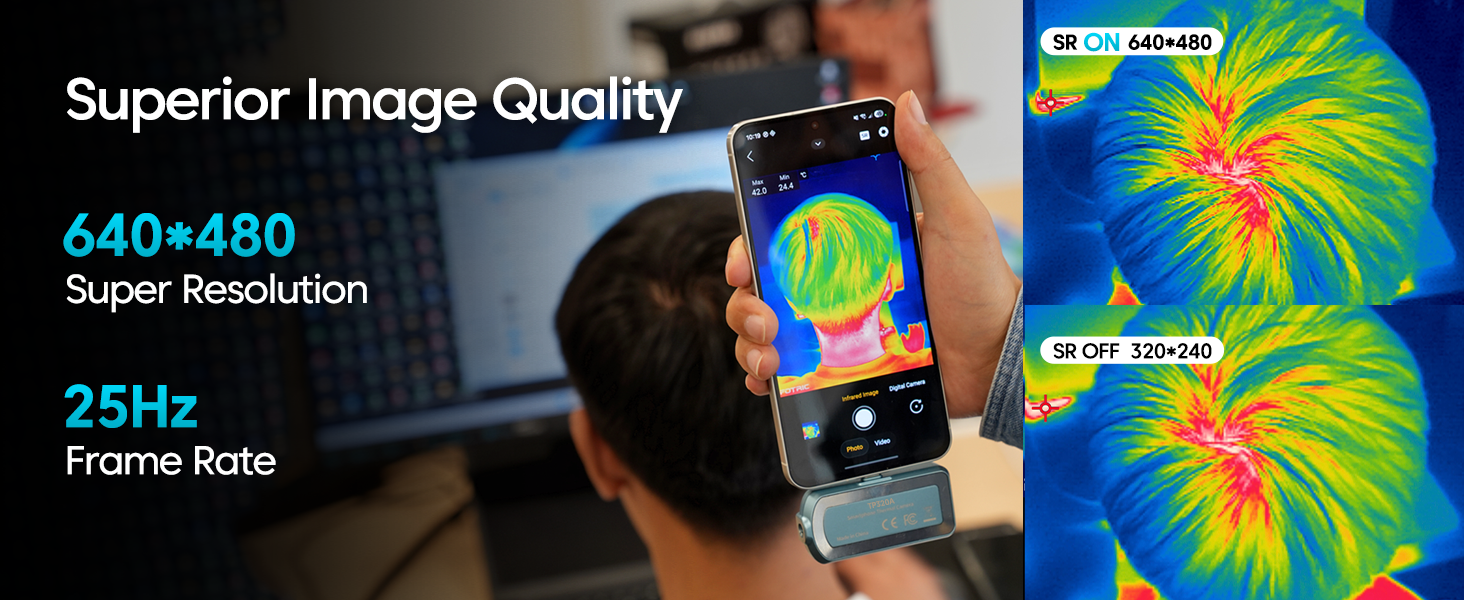

Experience professional-grade clarity with a 320x240 infrared resolution (Super Resolution up to 640x480) and exceptional thermal sensitivity (NETD <35mK). The FOTRIC TP320A captures crisp, detailed thermal images, making it an indispensable tool for precise anomaly detection in complex industrial and electrical environments. - Plug-and-Play Smartphone Integration

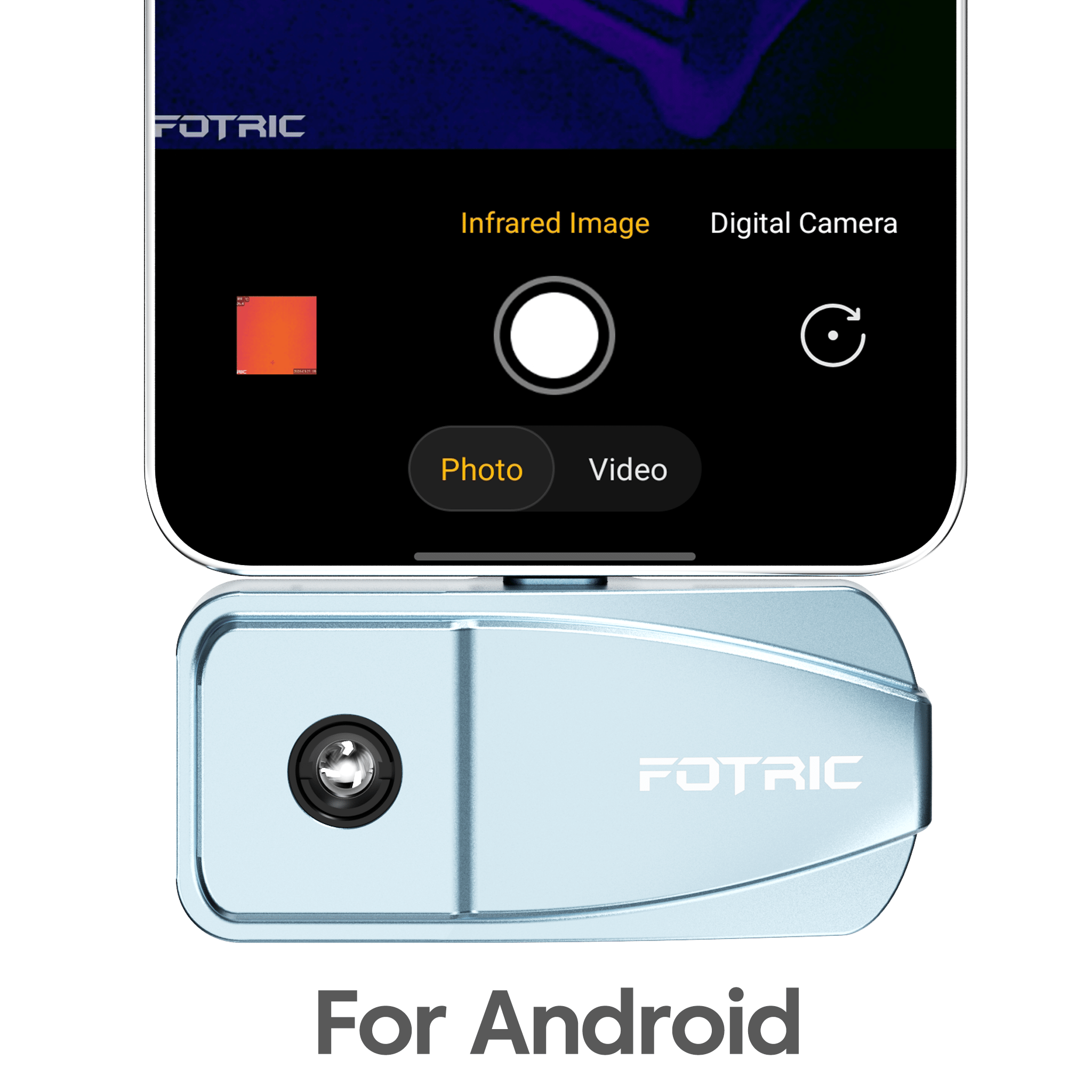

Enchant your phone with infrared vision instantly. This thermal camera requires no boot-up time, complex configuration, or separate charging. Simply connect it to your Android device via the USB Type-C port, launch the FOTRIC Genie app, and begin your inspection immediately. - Wide Temperature Range & Professional Accuracy

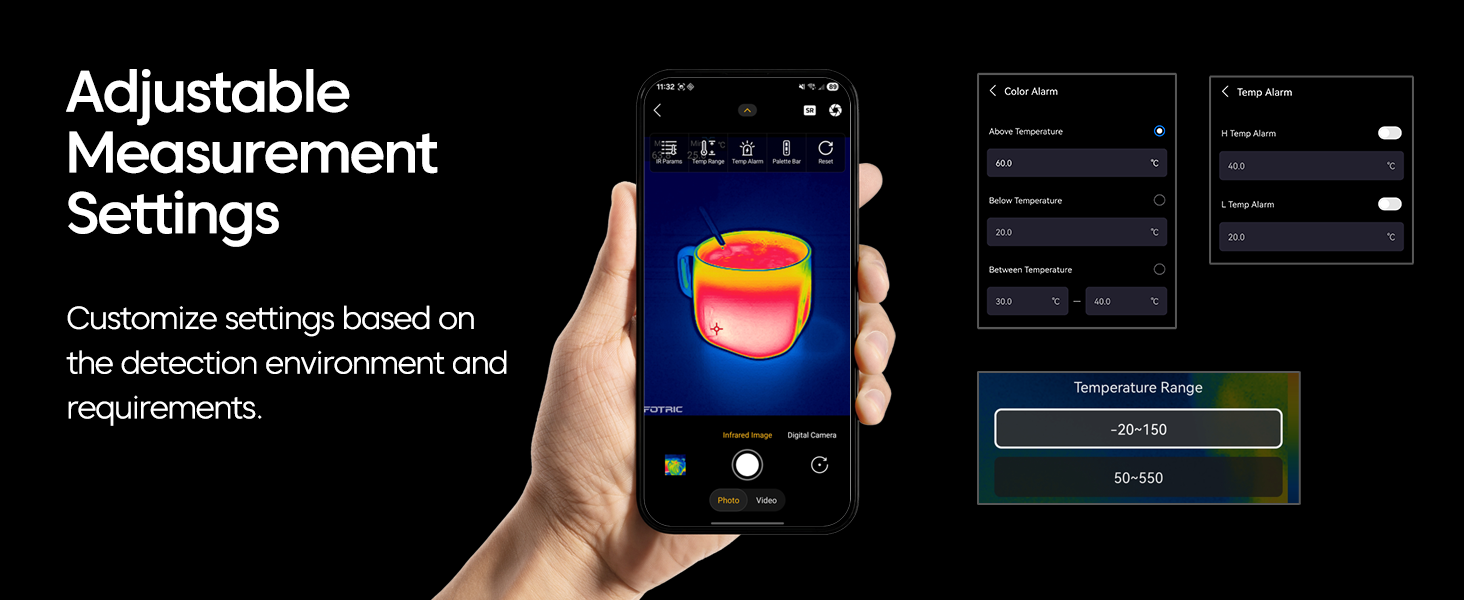

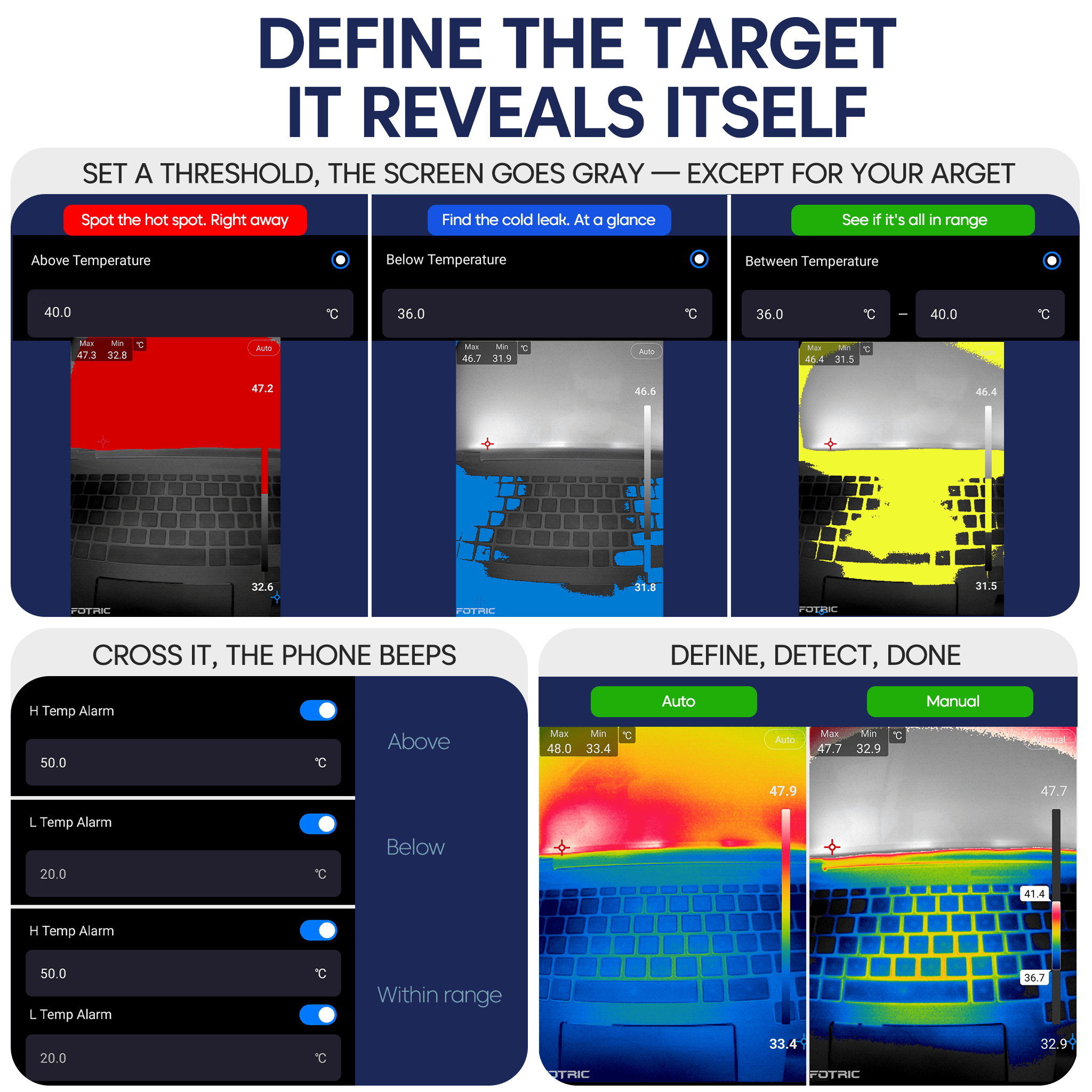

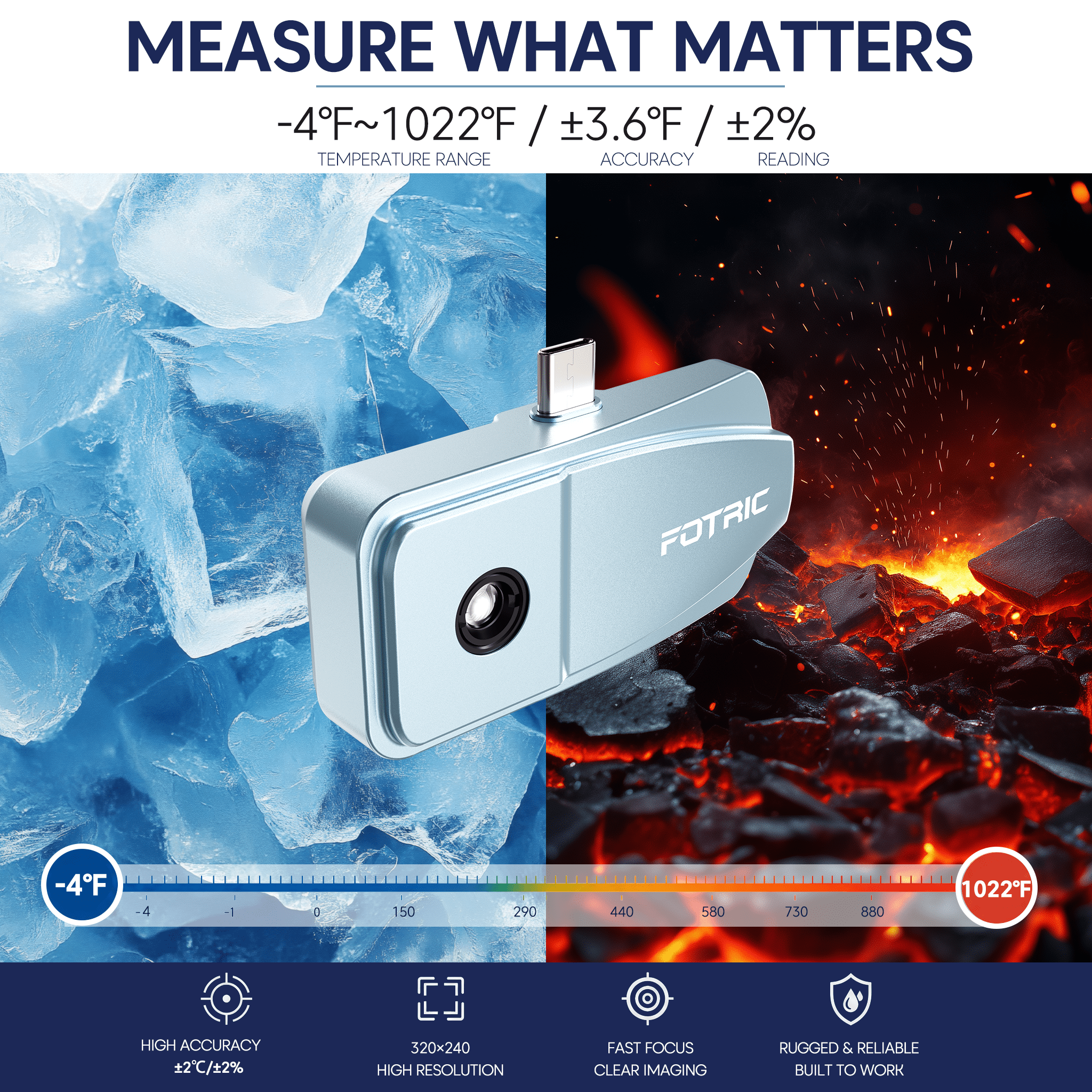

Designed to handle demanding applications, the TP320A measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a rigorous accuracy of ±2°C or ±2% (whichever is greater). It supports comprehensive temperature analysis, including center spot, max/min tracking, and customizable high/low-temperature alarms for enhanced safety and monitoring. - Versatile Multi-Scenario Applications
From industrial equipment checks and electrical cabinet inspections to home HVAC troubleshooting, floor heating verification, and even outdoor exploration at night. The focus-free lens (60°×45° FOV) and 10 dynamic color palettes provide the flexibility needed for both professional technicians and advanced DIY users. - Rugged Durability & Advanced Analysis

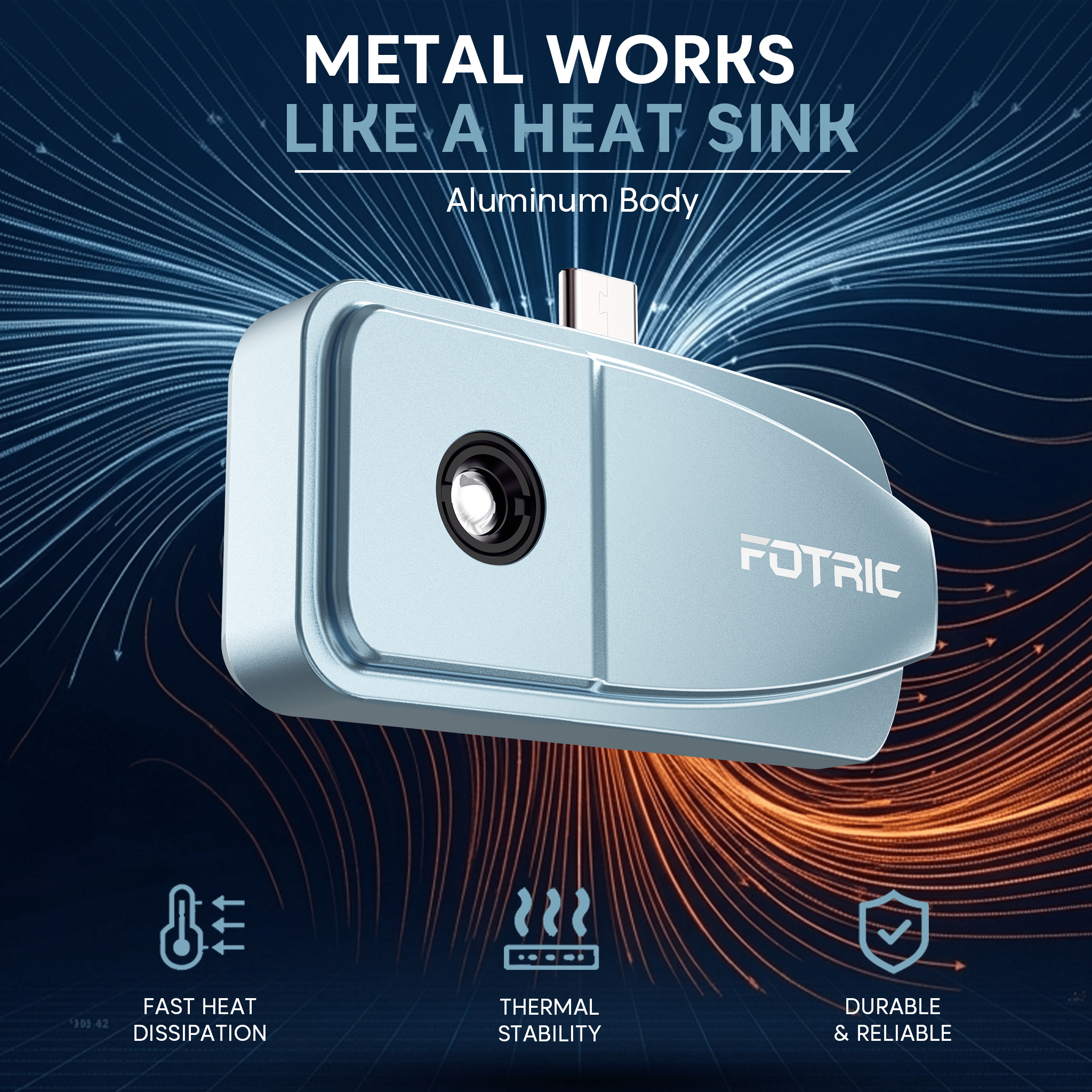

Weighing a mere 40g, this pocket-sized powerhouse doesn't compromise on toughness, boasting an IP40 protection rating and 1-meter drop resistance for reliable field work. Beyond the hardware, it integrates seamlessly with AnalyzIR Professional Thermal Imaging Analysis Software, empowering engineers to conduct in-depth post-inspection analysis and generate comprehensive reports effortlessly.
-

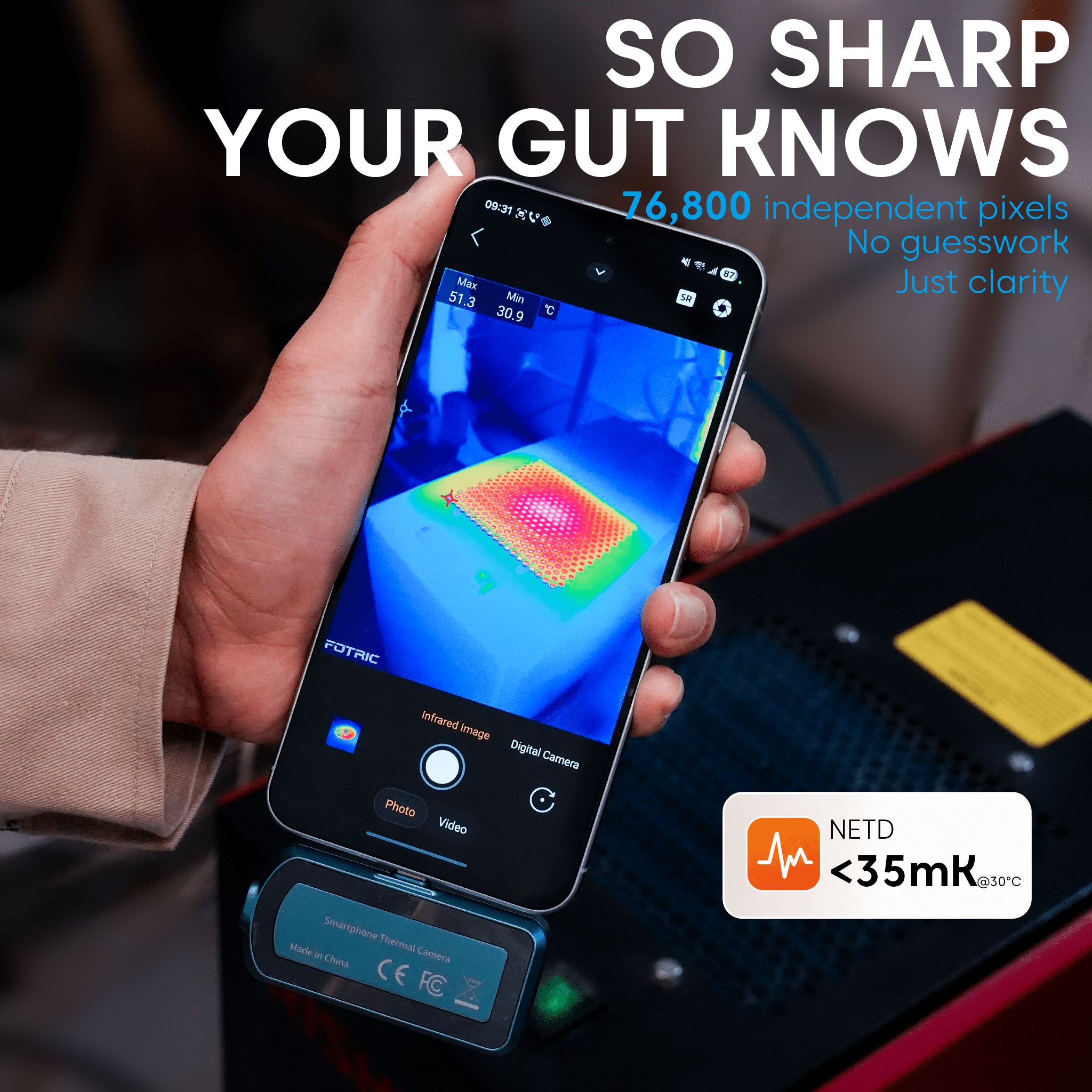

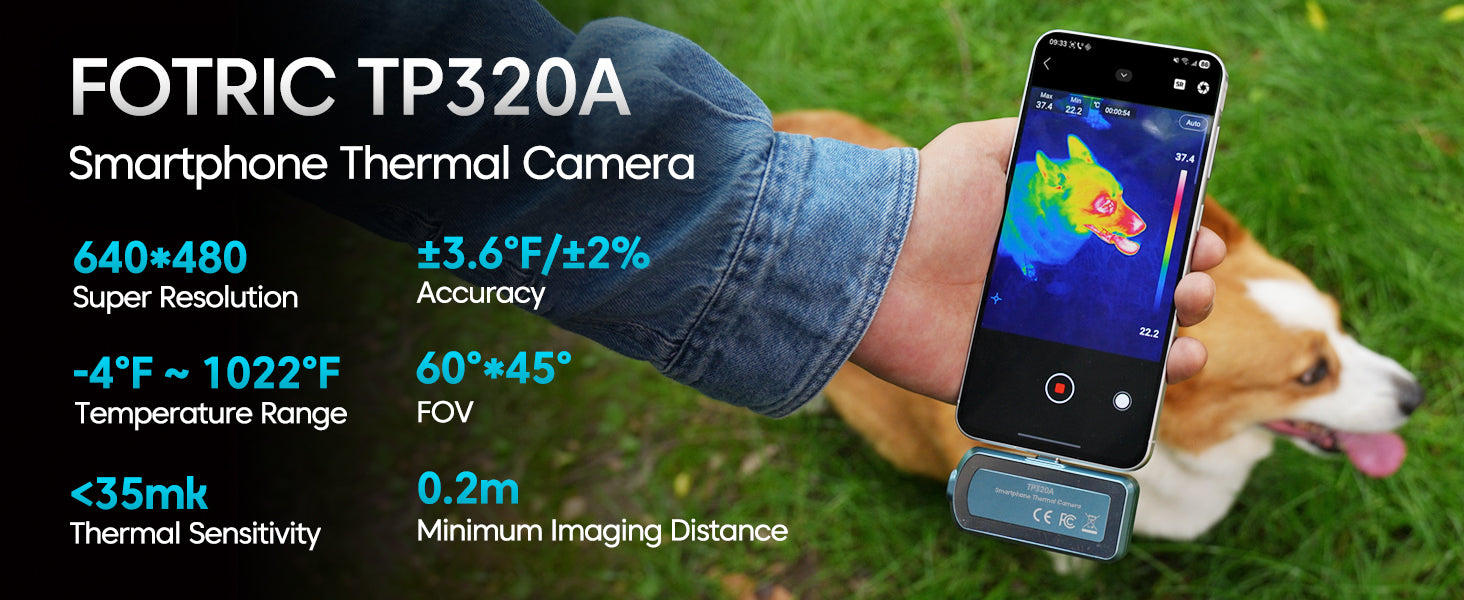

True 320×240 Thermal Resolution
Capture clear thermal images with a 320×240 infrared detector and ≤35mK thermal sensitivity, allowing you to identify subtle temperature differences with confidence.
-

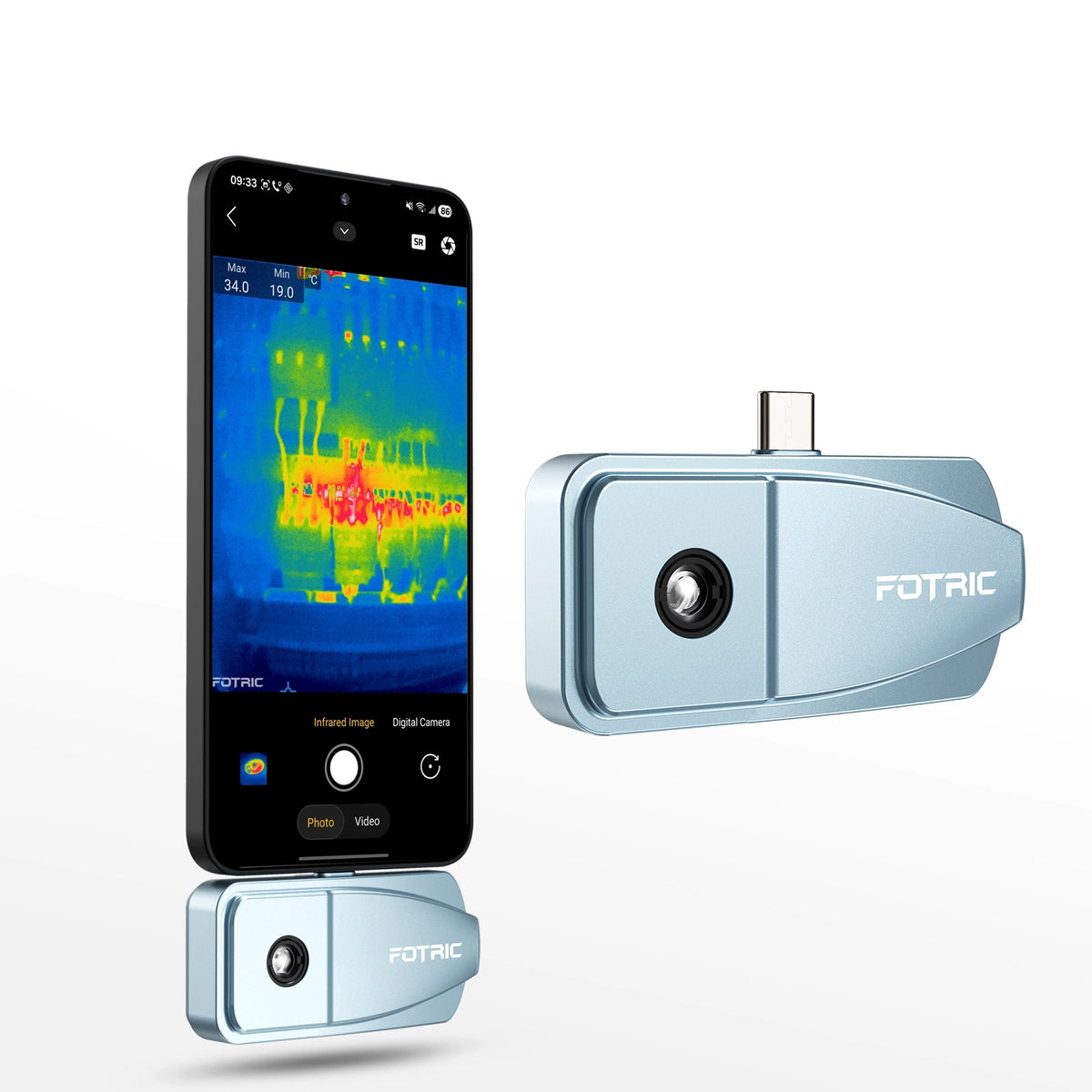

Ultra-Light Plug-and-Play Design
Connect directly to your smartphone via USB-C with no charging, configuration or startup delay required. Weighing only 40g, the TP320A is easy to carry anywhere.
-
Wide-Angle, Focus-Free Imaging
Featuring a 60°×45° field of view and focus-free design, the TP320A delivers fast and convenient thermal inspections from as close as 0.2m.
-

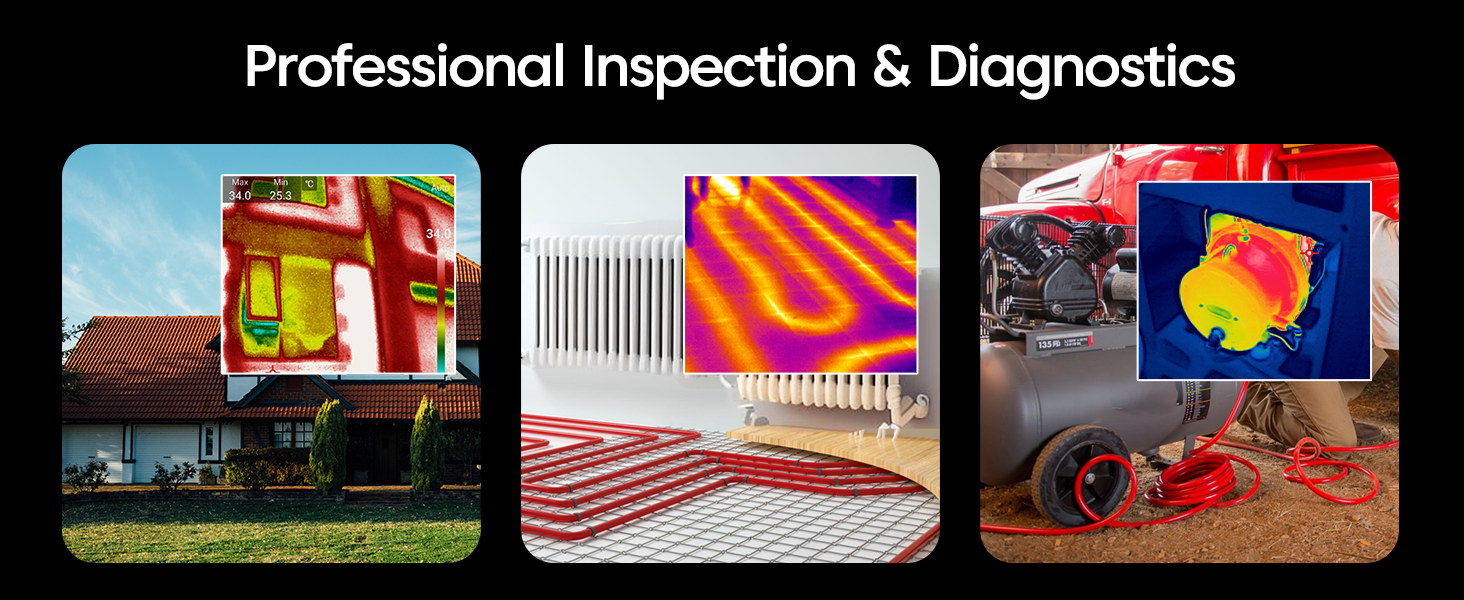

Built for Multiple Applications
Ideal for outdoor observation, electrical inspections, HVAC diagnostics, home maintenance and energy-loss detection across a wide range of environments.
-
Professional Temperature Analysis
Measure temperatures from -20°C to 550°C with an accuracy of ±2°C or ±2% of reading (whichever is greater) for reliable thermal diagnostics.
-

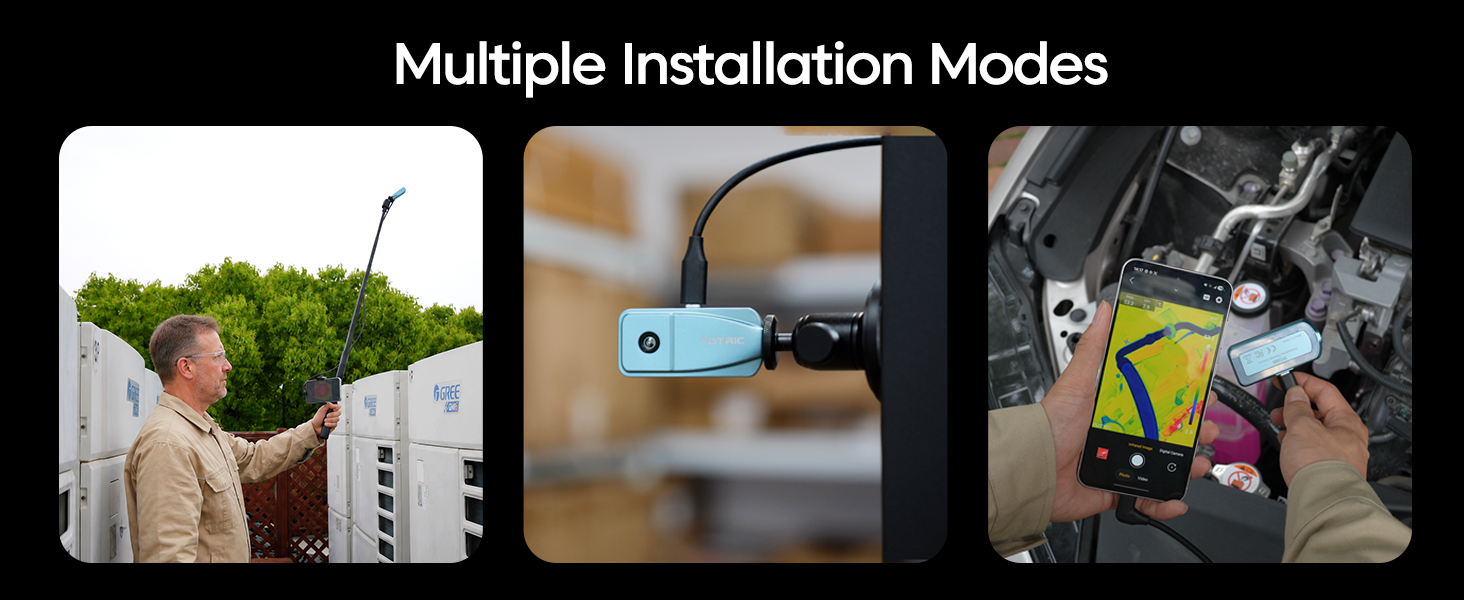

Software & Accessory Ecosystem
Compatible with Android 12+, the TP320A works with the FOTRIC Genie App and AnalyzIR software, while a full range of accessories provides flexible mounting and inspection options.
Everything You Need, Right Out of the Box
Plug in. Open the app. You're ready.

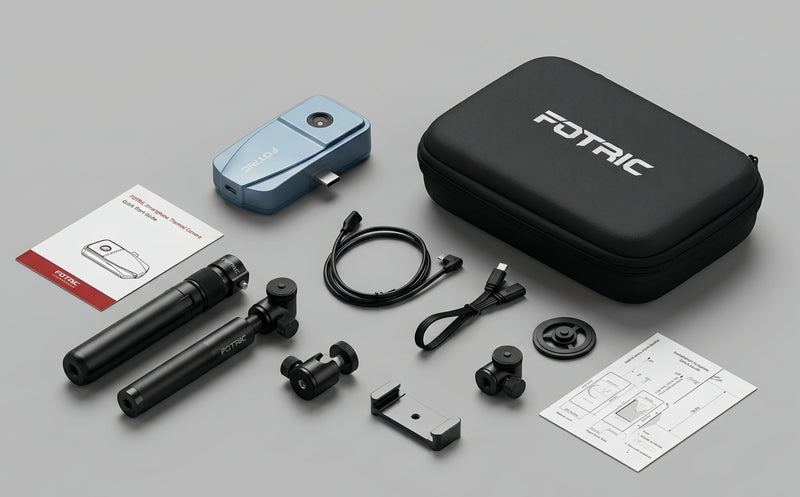

What's Included
- TP320A Thermal Camera
- Phone Clamp
- USB-C Cable Kit

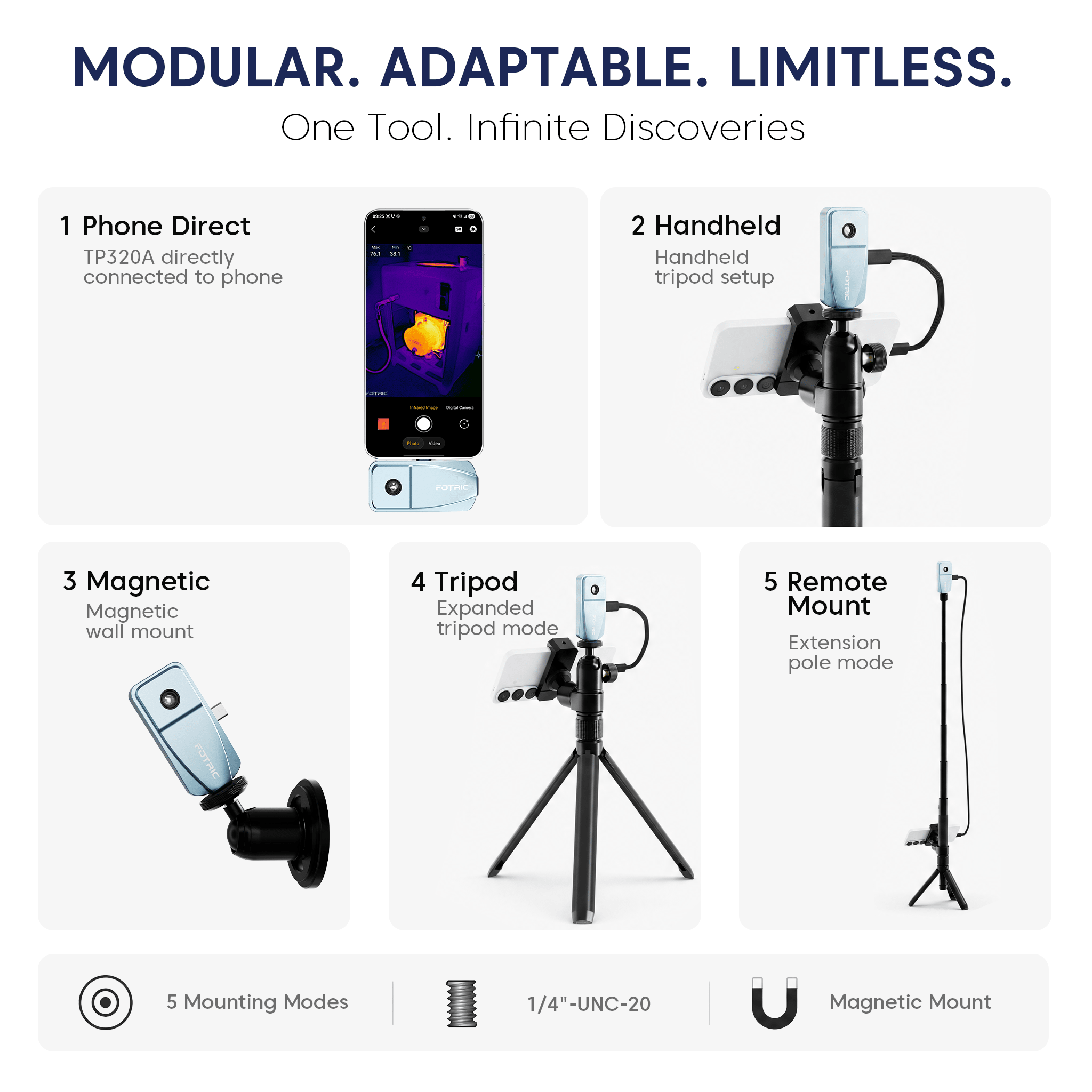

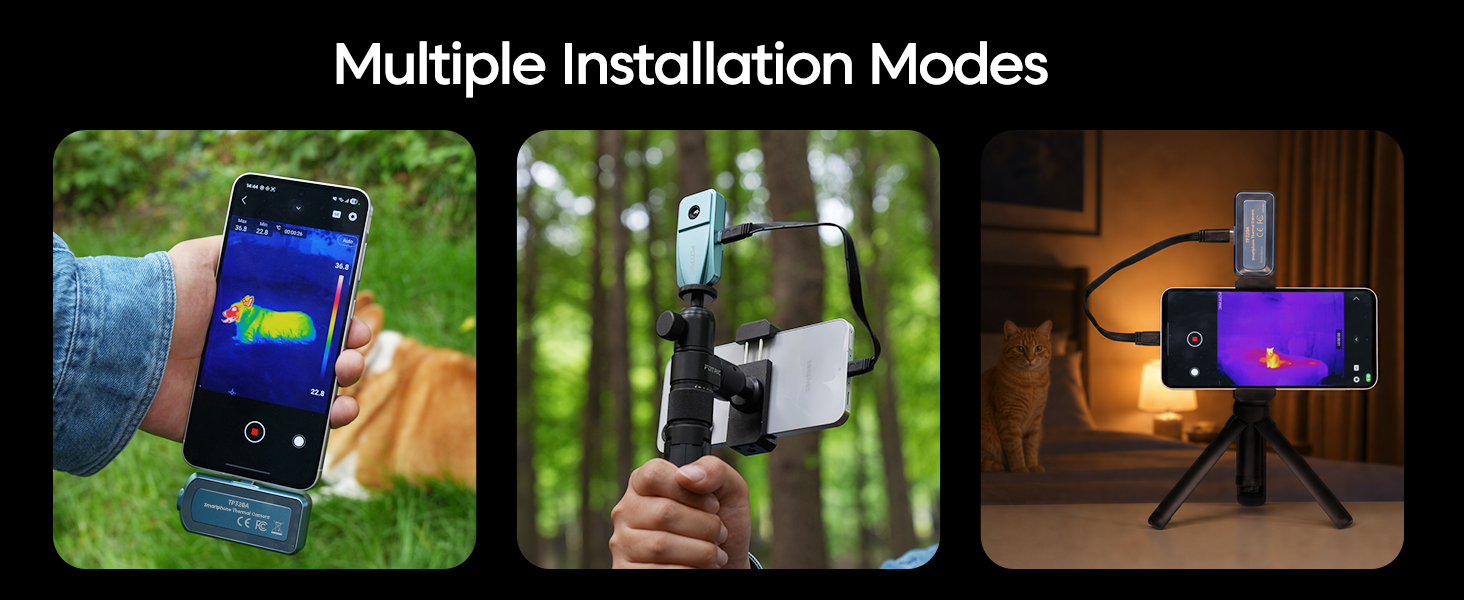

- Complete Mounting Kit (Tripod, Extension Rod, Phone Holder, Ball Head)
- Carrying Case
- Quick Start Guide
- FOTRIC Genie App — Free Download

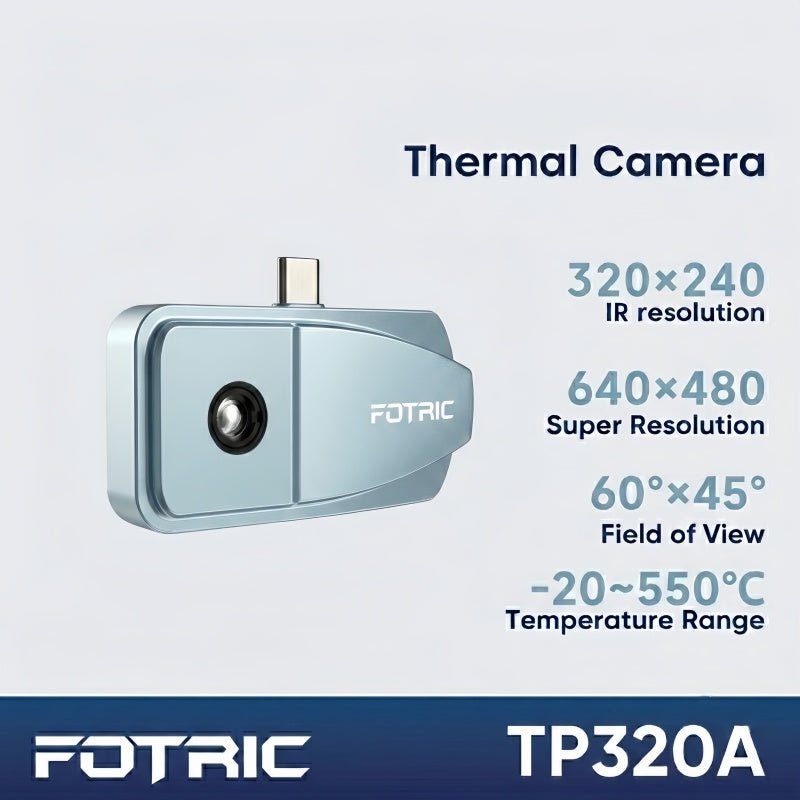

Technical Specifications
Infrared Resolution
320×240 (76,800 temperature pixels)
Super Resolution
640 × 480
Thermal Sensitivity
< 35 mK
Spectral Range
8 – 14 μm

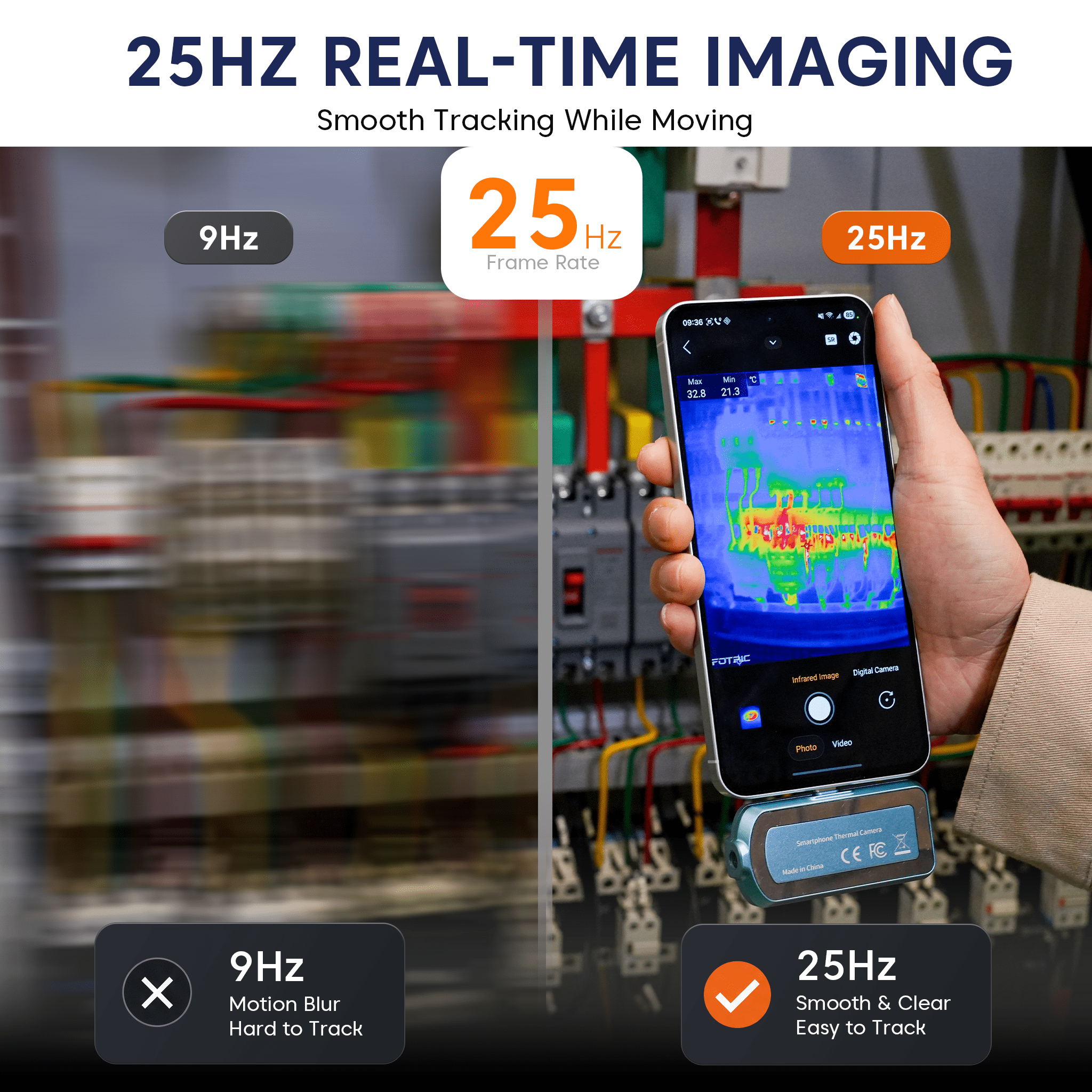

Image Frame Rate
25 Hz
Field of View
60° × 45°
Minimum Imaging Distance
0.2 m
Focus Mode
Focus free
Temperature Range
-20 – 550℃
Measurement Accuracy
±2℃ (3.6℉) or ±2%, whichever is greater

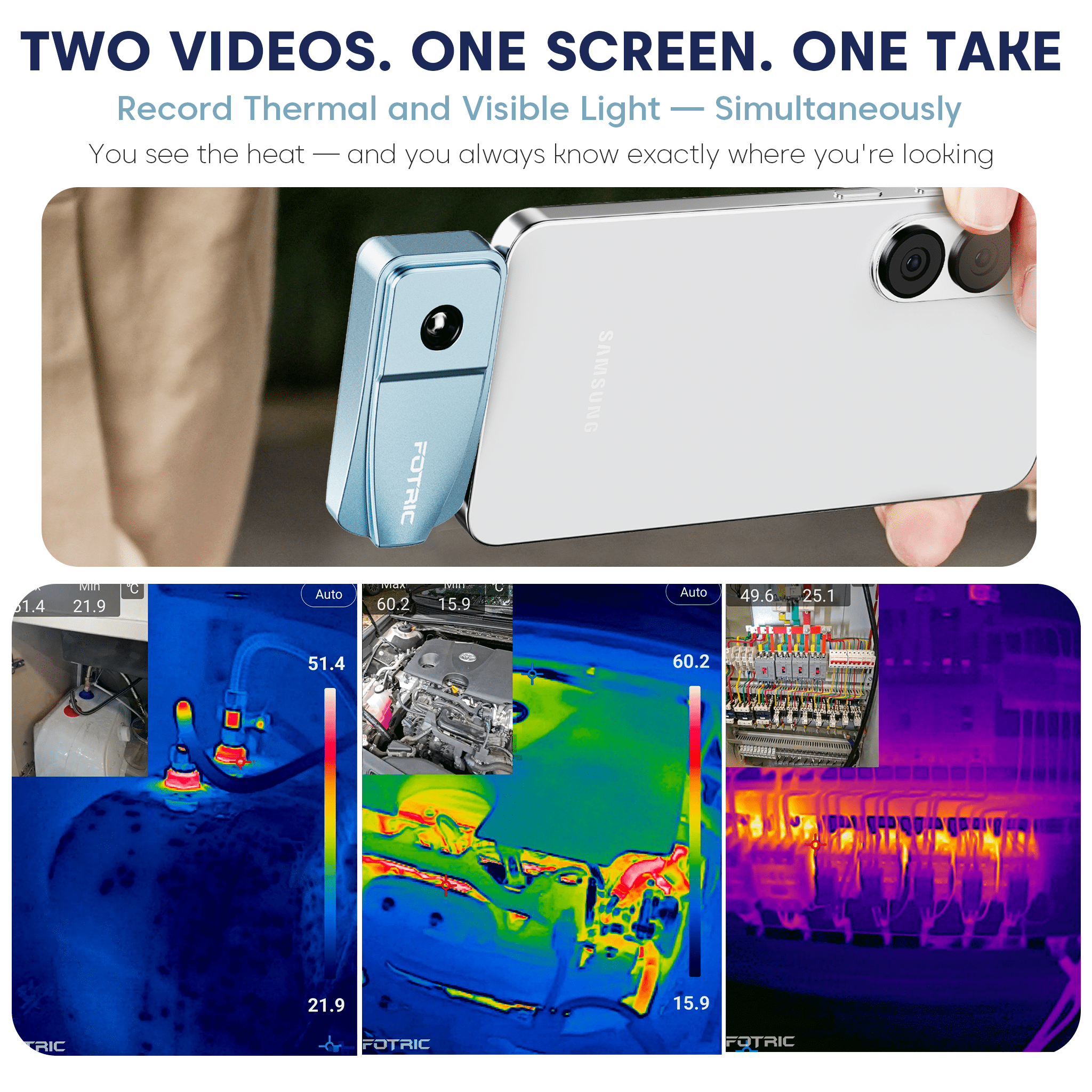

Image Mode
Thermal, Thermal + visible light
Protection Level
IP40 (IEC 60529)
Drop Resistance
1 m
Dimensions
71 × 33 × 15.5 mm
Weight
40 g
PRODUCT MANUAL
FOTRIC Manisen User Guide
Quick start · Safety notes · Full specifications
View User Guide
Google Play
FAQ
FAQ
Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.

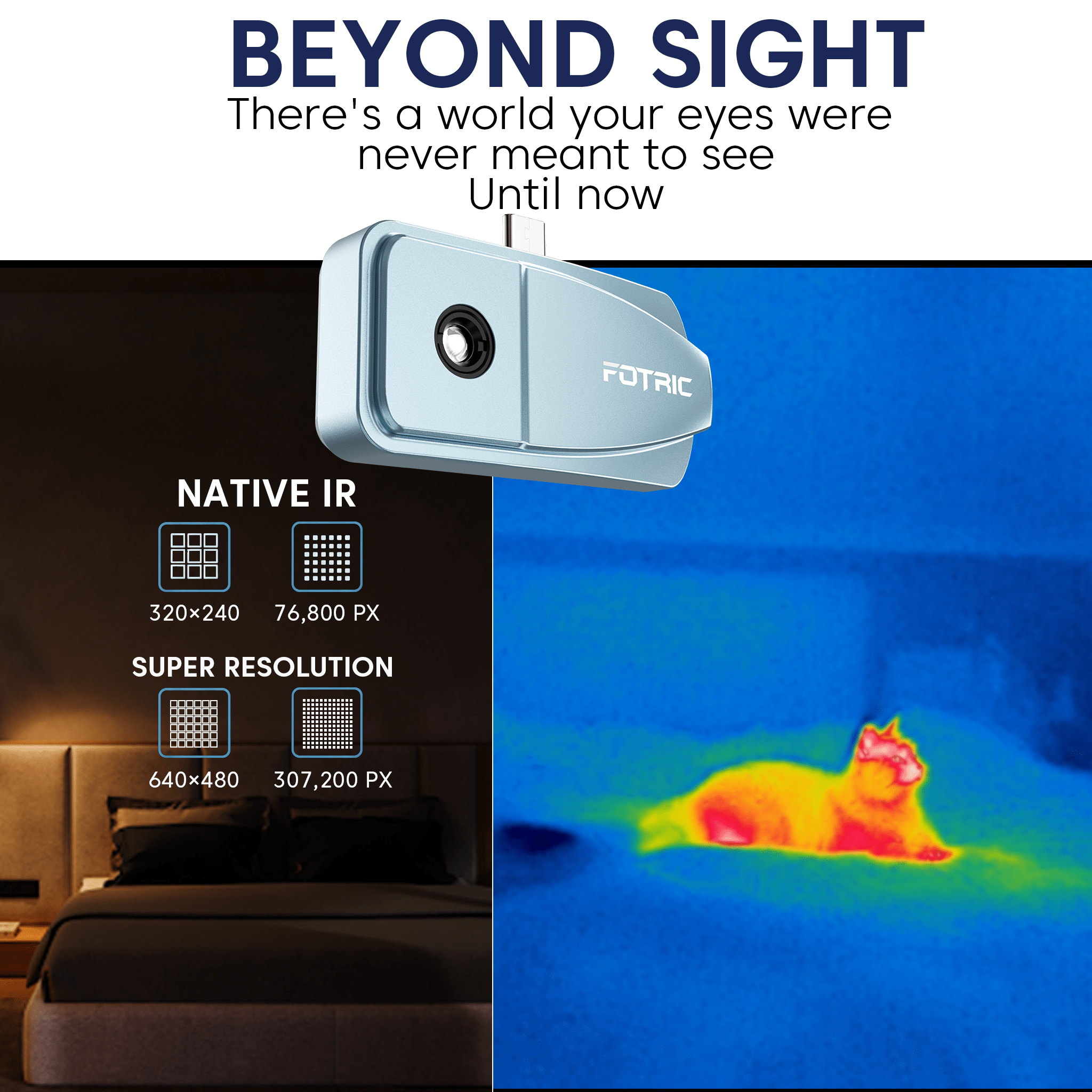

View All Support ResourcesWhat is the infrared resolution? Does it support super resolution?

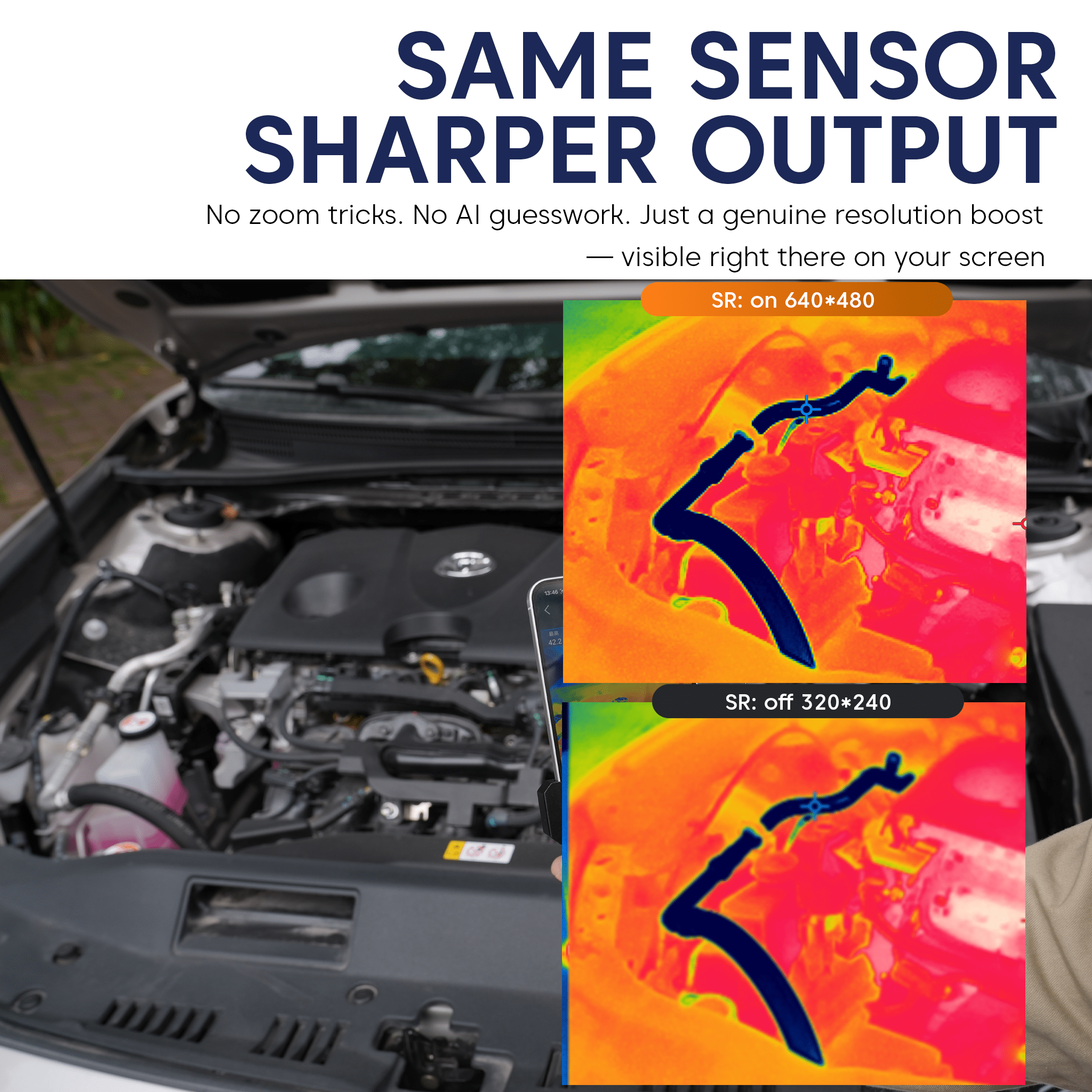

The infrared resolution is 320×240. It supports Super Resolution which enhances the image to 640×480 for greater detail.
What is the temperature measurement range and accuracy?
- Temperature range: -20°C to 550°C (-4°F to 1022°F)
- Temperature span:-20-150°C/50-550°C (manually switchable)
- Accuracy: ±2°C or ±2%, whichever is greater (at 15~35°C ambient, target >0°C, calibrated at 1m)Temperature range: -20°C to 550°C (-4°F to 1022°F)
- Temperature span:-20-150°C/50-550°C (manually switchable)
- Accuracy: ±2°C or ±2%, whichever is greater (at 15~35°C ambient, target >0°C, calibrated at 1m)
What smartphones are compatible with the TP320A? Does it work with iOS/iPhones?
The TP320A is designed exclusively for Android devices and does not support Apple iPhones. For seamless plug-and-play operation, your smartphone must run Android 12 or above and have the OTG (On-The-Go) function enabled in the settings.

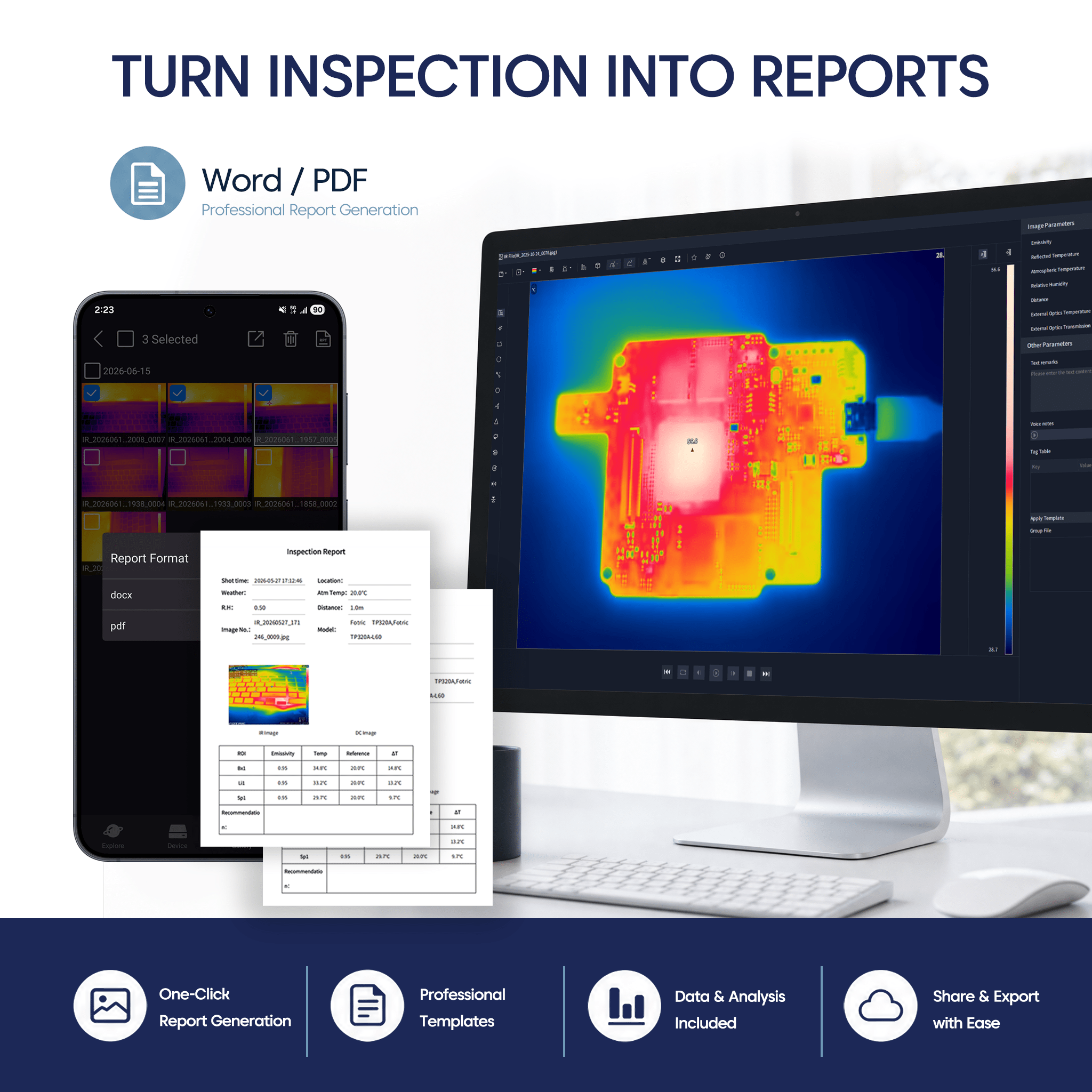

Can I use PC software to analyze images?
Yes. The TP320A supports Analyz IR Professional Thermal Imaging Analysis Software for in-depth post-inspection analysis and report generation.
Does the TP320A have its own battery? Does it drain my phone?
The TP320A does not have its own battery. It is powered by the phone via USB Type-C with a typical power consumption of only 0.5W, so the impact on your phone's battery is minimal.
No charging or boot-up time is needed — simply plug it in and start using it.
What can the TP320A be used for?
- Home inspection — check floor heating, air conditioning, detect air leaks around doors and windows
- Equipment inspection — identify hot spots in electrical cabinets, monitor motor temperatures, check HVAC systems
- Outdoor exploration — observe animal activity at night, detect residual heat sources, monitor environmental temperature differences
