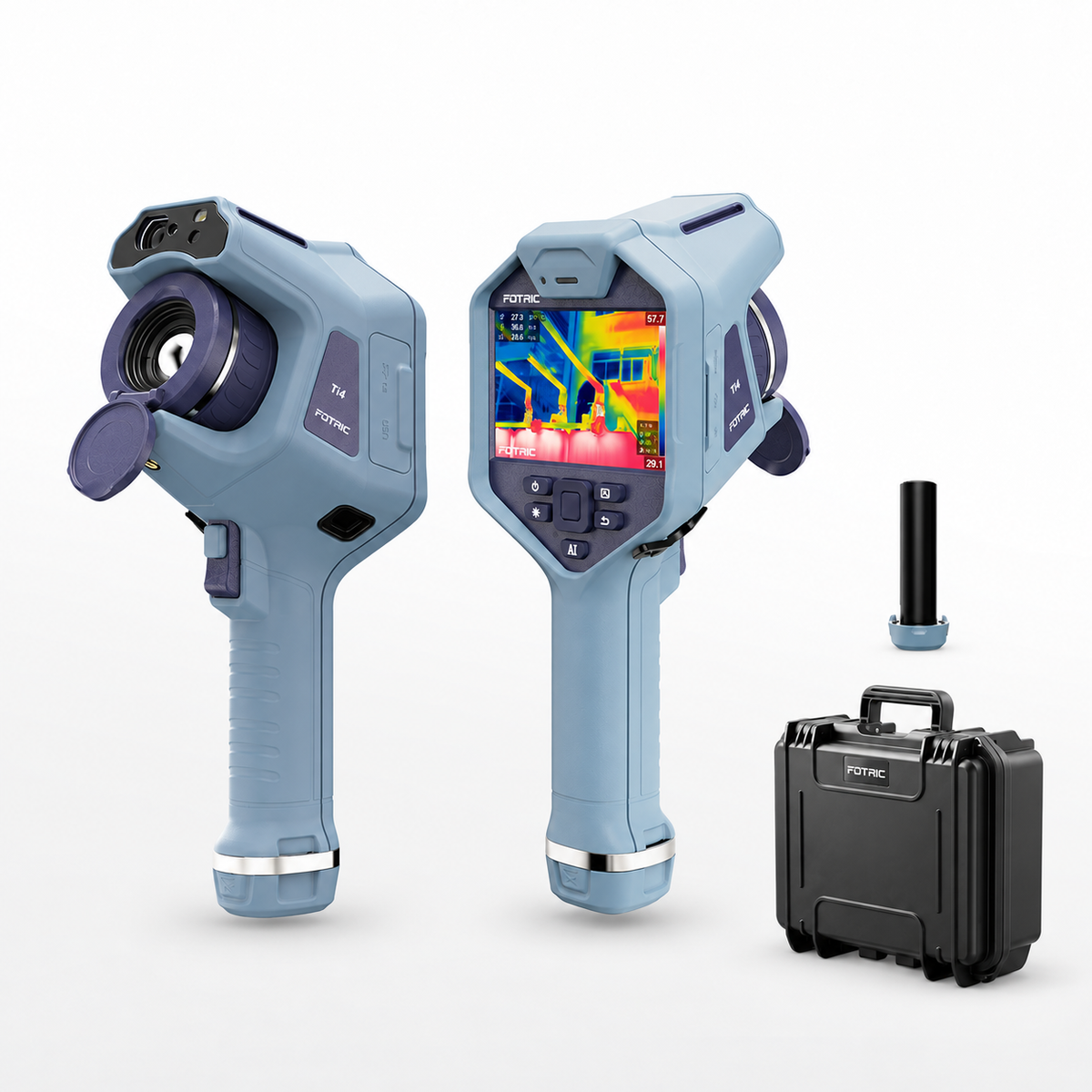

FOTRIC Ti4 Thermal Imaging Camera

£2,549.99
£2,549.99
✓ Local VAT Included. Free shipping. Discounts calculated at checkout.
FOTRIC Store offer
Save 20% on this product
Copy code Add to cart Apply at checkout
FOTRIC20
Wondering why a room loses heat, an electrical connection runs hot, or a motor gets warmer than expected? The FOTRIC Ti4 helps you see temperature patterns and narrow down where to investigate. Autofocus, on-screen measurements, and image annotations make it easier to check your findings and explain them to a technician, customer, or colleague.

Description

  • Find Heat Anomalies with Clear Thermal Detail
    Identify unusual temperature patterns in electrical cabinets, power lines, and mechanical equipment with native 320 × 240 infrared resolution and <40 mK thermal sensitivity. A measurement range of -20°C to 650°C (-4°F to 1202°F) and accuracy of ±2°C (±3.6°F) or ±2% support routine inspections across a wide range of equipment.

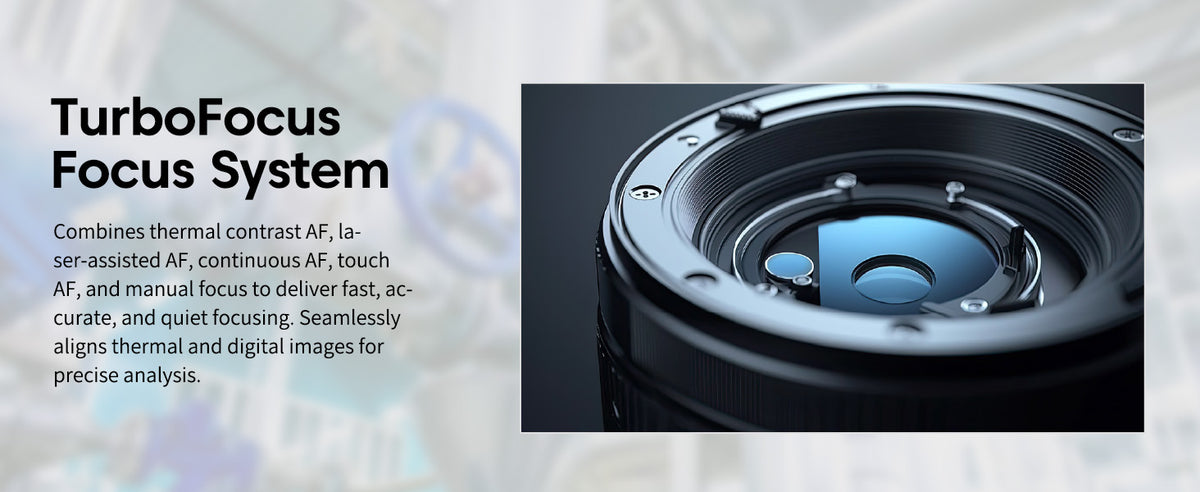

  • Focus Faster as You Move Between Targets

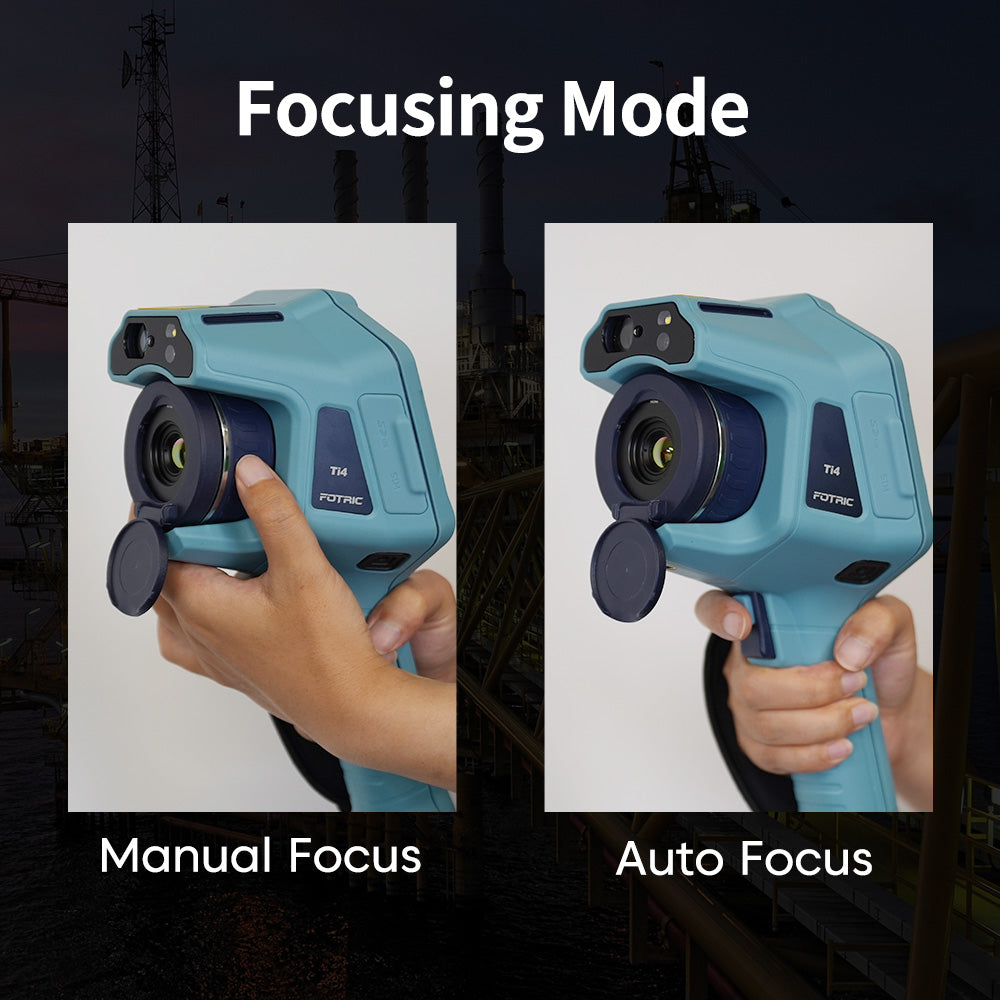

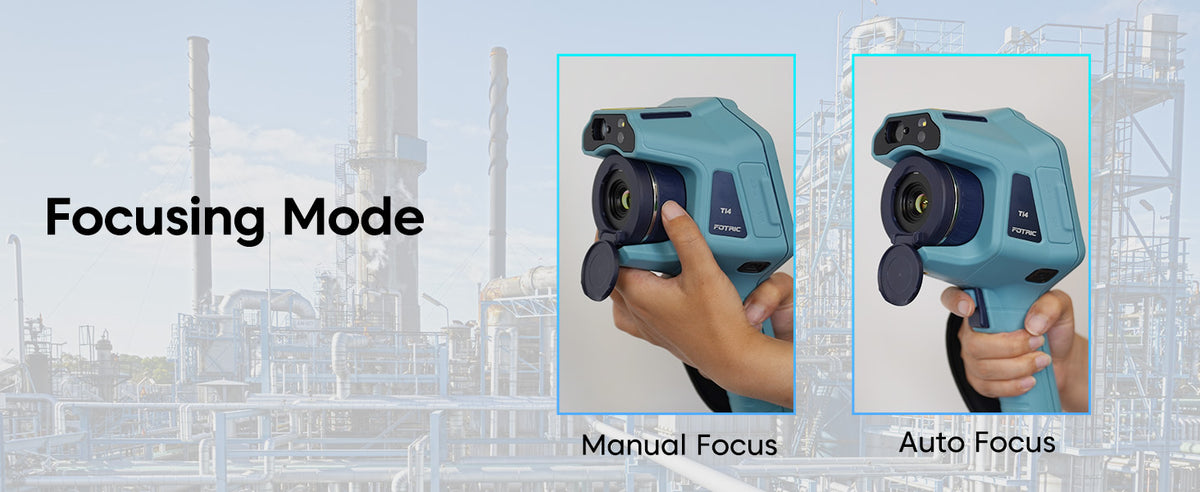

    Spend less time adjusting the image with TurboFocus. Laser-assisted, thermal contrast, and touch focusing help bring targets into focus quickly, while manual focus gives you additional control when inspecting specific components.

  • Understand and Record Findings on Site

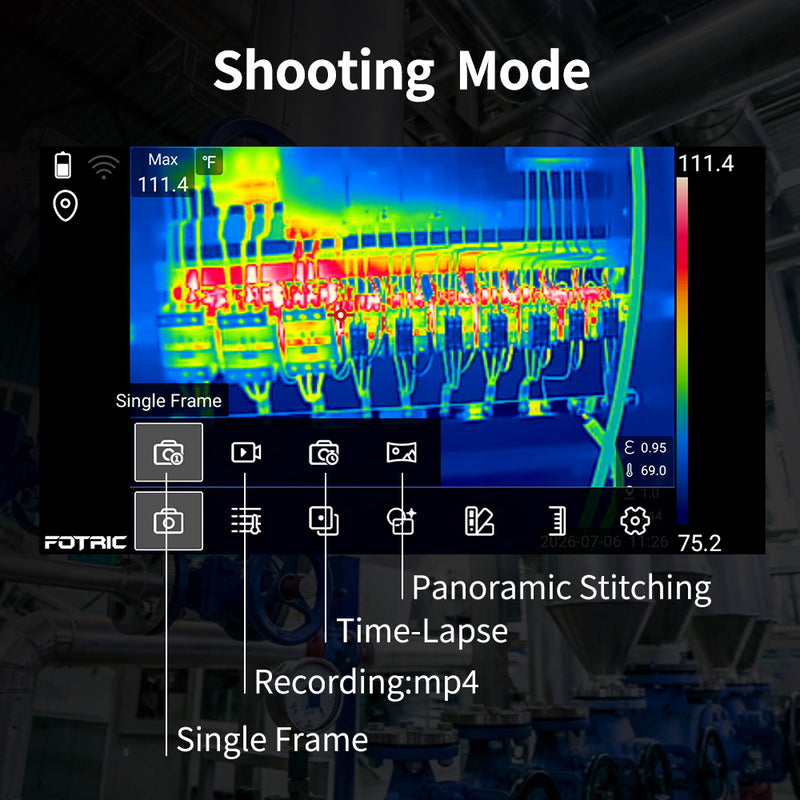

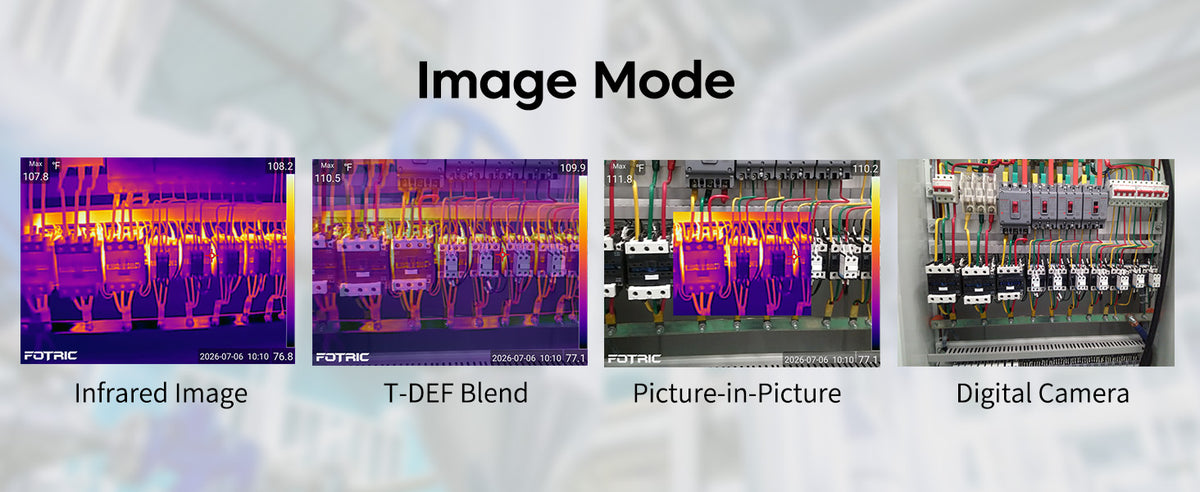

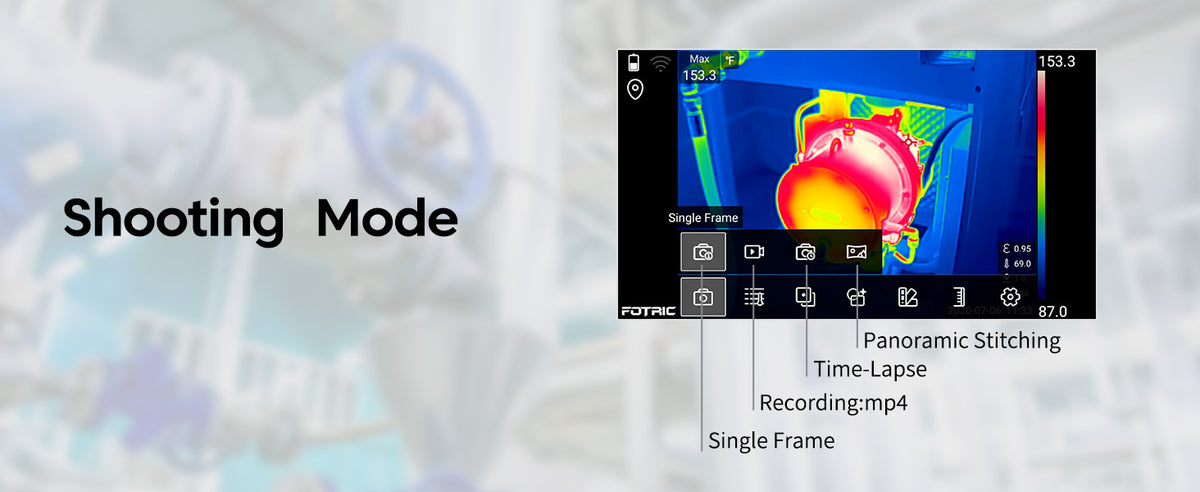

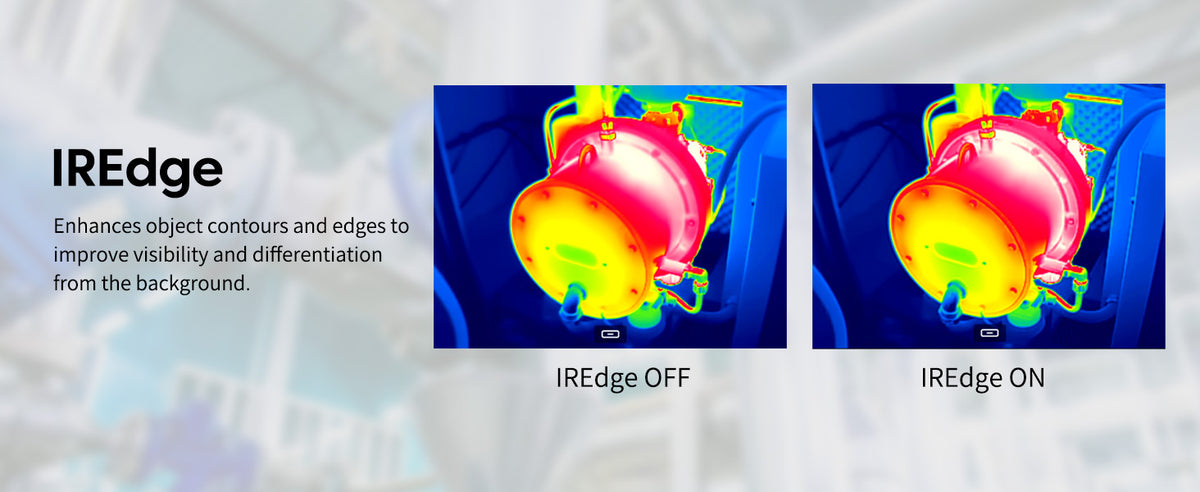

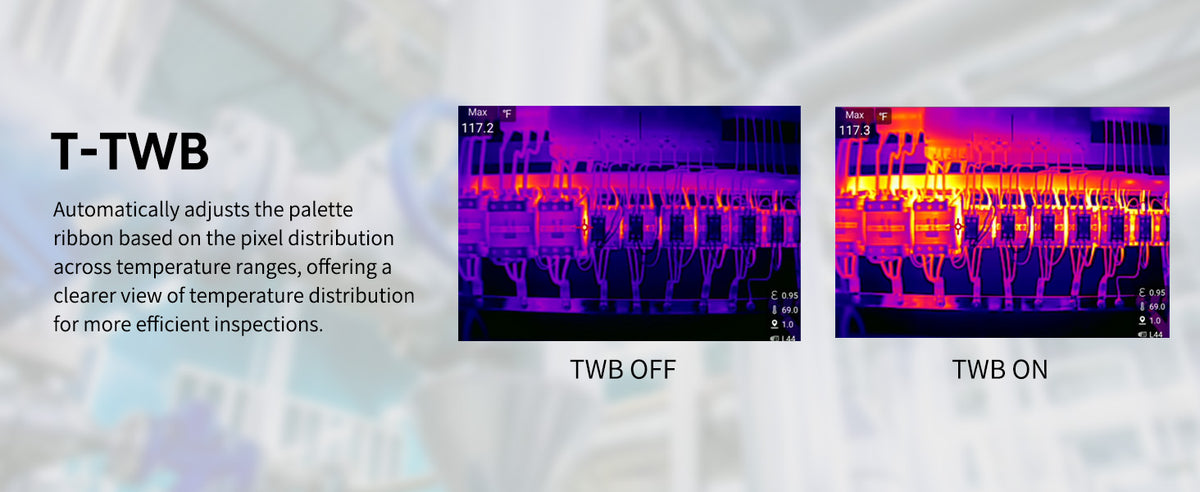

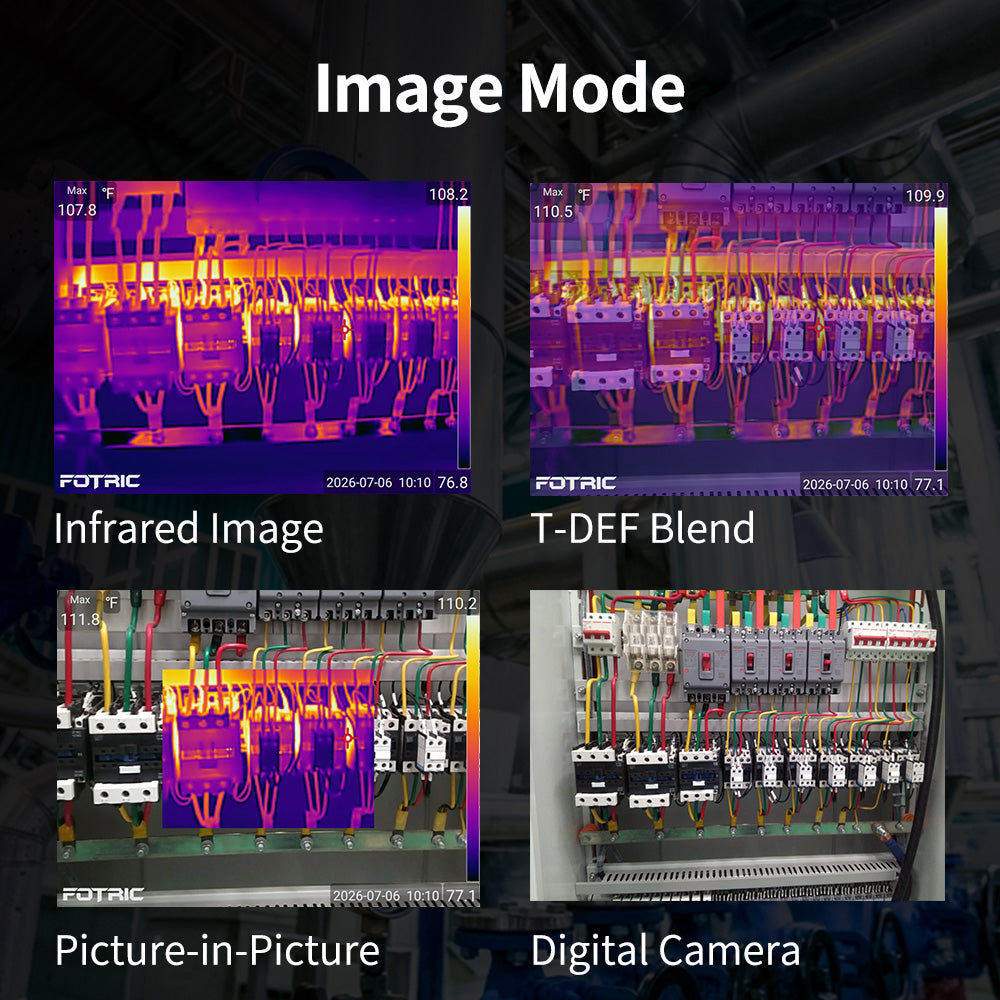

    Review thermal images on the 5-inch 720p touchscreen and compare temperatures using 4 spot, 3 line, and 4 area measurement tools. IREdge enhances object outlines, and T-TWB makes temperature patterns easier to distinguish. Built-in annotations help you record context while the inspection is still fresh.

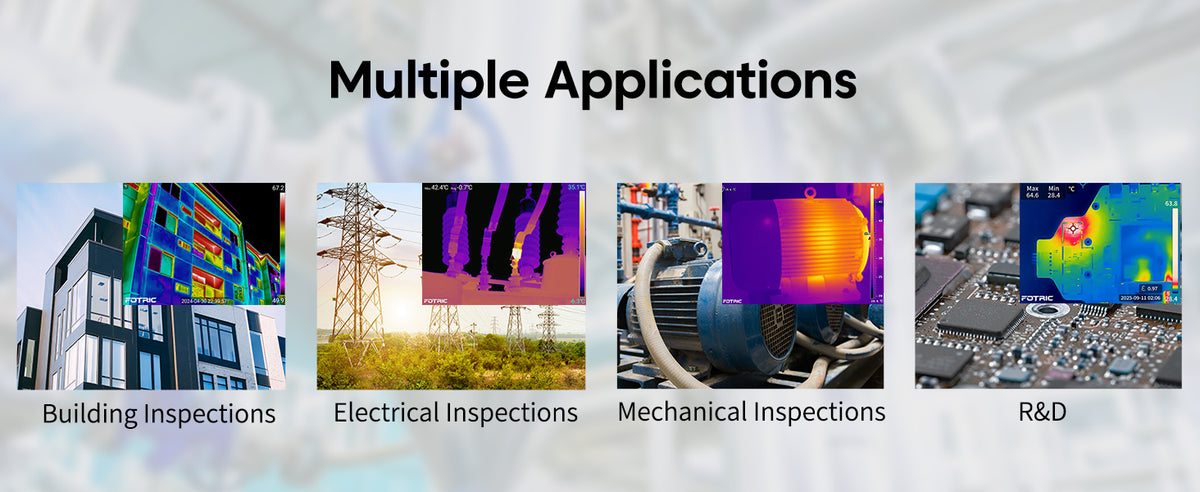

  • Use One Tool for Maintenance and Teaching
    Investigate equipment overheating, assess building heat loss, or demonstrate heat transfer in the classroom. From electrical inspections to laboratory experiments and engineering lessons, the camera helps make temperature patterns visible and easier to explain.

  • Measure and Document with Less Guesswork

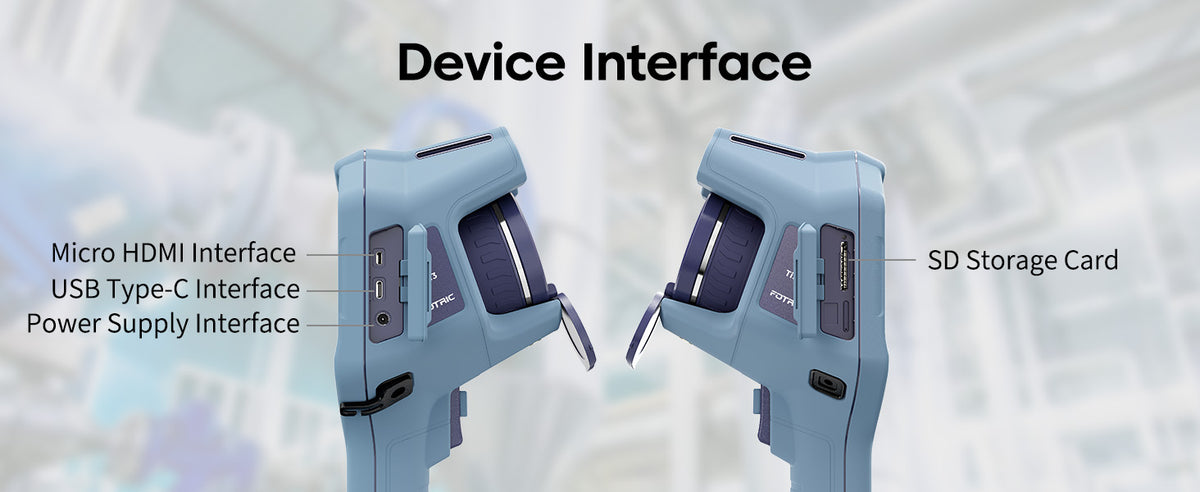

    The integrated laser rangefinder measures distances from 0.1 to 50 m and supports length and area measurement, adding useful context to your thermal findings. Wi-Fi, Bluetooth, and HDMI connectivity provide options for sharing data or displaying results during inspections and demonstrations.

  • Stay Equipped for Longer Inspection Rounds
    IP54 dust and splash protection and 2-meter drop resistance help the camera withstand everyday field use. Two included rechargeable batteries provide at least 4 hours of operation each. The kit also includes a charging dock, 64 GB SD card, USB-C and Micro HDMI cables, lens cover, calibration certificate, soft bag, and hard carrying case to keep your equipment protected and organized.
Tech Specs Show More Show Less
IR Resolution
320 × 240
Temperature Range
-20°C to 650°C (-4°F to 1202°F)
Focus System
TurboFocus Autofocus + Manual Focus
Field of View
44° × 33°
Display
5-inch 720p touchscreen
Battery Runtime
≥4 hours per battery
What's Included Show More Show Less
  • 1 ×FOTRIC Ti4 Thermal Imaging Camera with Lens
  • 1 ×Lens Cover
  • 2 ×Rechargeable Batteries
  • 1 ×Battery Charging Dock
  • 1 ×Power Adapter
  • 1 ×USB Type-C to USB Cable
  • 1 ×Micro HDMI to HDMI Cable
  • 1 ×64 GB SD Card
  • 1 ×SD Card Reader
  • 1 ×Accessory Kitwrist strap, strap holders, mounting screws, lanyard, and Allen wrench
  • 1 ×Documentation Packuser manual, packing list, calibration certificate, and warranty card
  • 1 ×Portable Soft Bag
  • 1 ×Hard Carrying Case
Quantity:
FOTRIC Ti4 Thermal Imaging Camera
£2,039.99 £2,549.99 Save 20%

Everything You Need, Right Out of the Box

What's Included

  • FOTRIC Ti4 Thermal Camera with Lens & Lens Cover
  • 2 Rechargeable Batteries
  • Charging Dock & Power Adapter
  • USB-C to USB & Micro HDMI to HDMI Cables
  • 64 GB SD Card & Card Reader
  • Accessory Kit & Documentation Pack
  • Portable Soft Bag & Hard Carrying Case

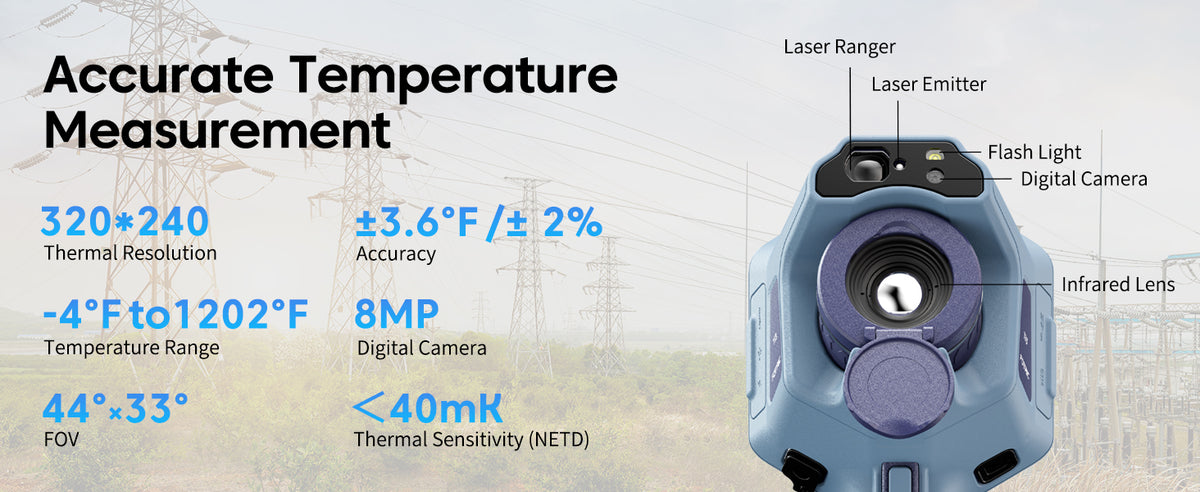

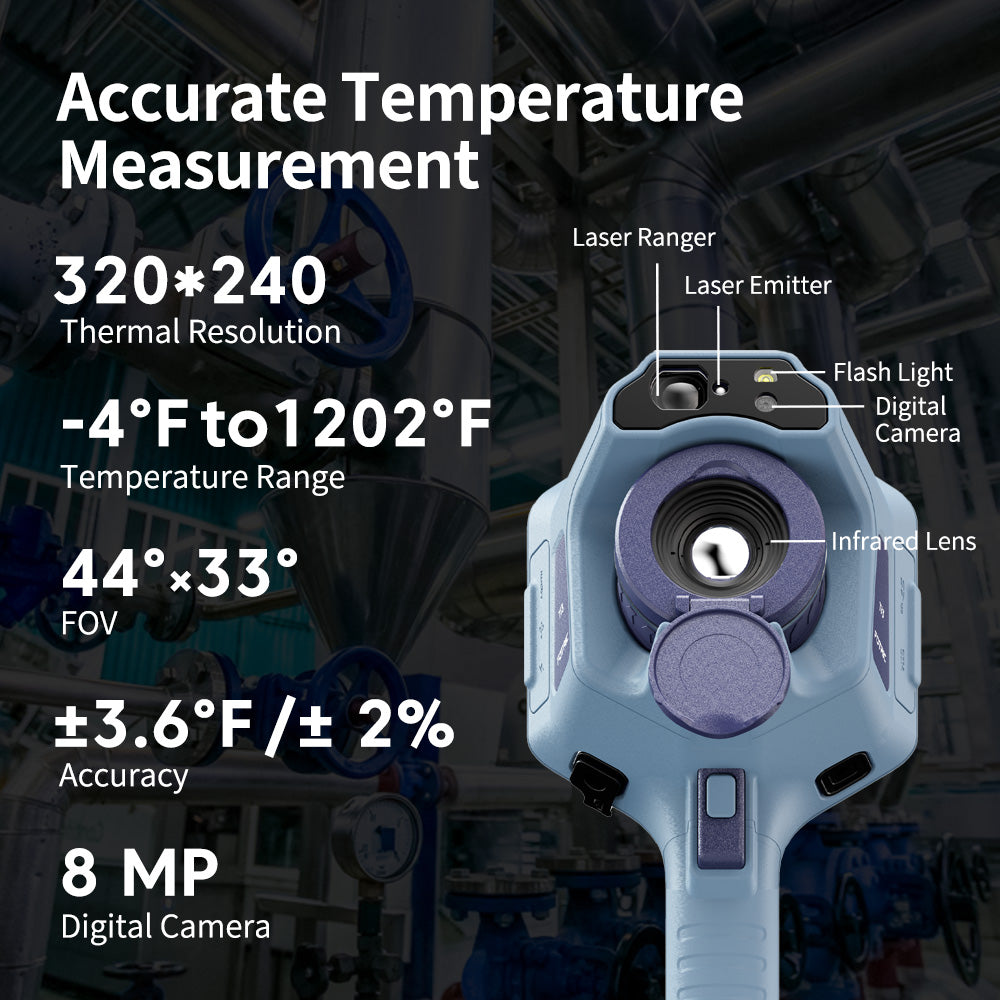

Technical Specifications

IR Resolution
320 × 240
Temperature Range
-4°F to 248°F / 32°F to 1202°F
Measurement Accuracy
±2°C or ±2%, whichever is greater
Thermal Sensitivity (NETD)
<40 mK at 30°C
Field of View (FOV)
44° × 33°
Focus System
TurboFocus Autofocus + Manual Focus
Minimum Imaging Distance
0.1 m
Image Frame Rate
30 Hz
Display
5-inch touchscreen (1280 × 720)
Digital Camera
8 MP
Digital Zoom
1–6× continuous zoom
Measurement Tools
4 spots, 3 lines, 4 areas
Battery Runtime
≥4 hours per battery
Storage
64 GB microSD card; expandable up to 1 TB
Protection & Durability
IP54; designed to withstand a 2 m drop with standard lens

Which model is right for you?

Swipe to compare more models

Which model is right for you?
You're viewing
FOTRIC Ti4
FOTRIC Ti4
View options
FOTRIC Ti3
FOTRIC Ti3
View product
FOTRIC TK7
FOTRIC TK7
View product
FOTRIC TK5
FOTRIC TK5
View product
FOTRIC TK6
FOTRIC TK6
View product
FOTRIC TP320A
FOTRIC TP320A
View product
FOTRIC TP320 Camping
FOTRIC TP320 Camping
View product
FOTRIC TK8
FOTRIC TK8
View product
Best for
HVACElectricalMechanical
HVACElectricalMechanical
HVACElectricalMechanical
HomeHVACElectrical
PCBElectricalMechanical
HomeHVACOutdoor
HomeHVACOutdoor
ElectricalMechanicalPCB
Price £2,549.99 GBP £2,169.99 GBP £1,919.99 GBP £699.99 GBP £769.99 GBP £319.99 GBP £319.99 GBP £2,549.99 GBP
IR Resolution 320 × 240 160 × 120 384 × 288 320 × 240 384 × 288 320 × 240 320 × 240 384 × 288
Object Temperature Range −4°F to 1202°F −4°F to 1202°F −4°F to 1022°F −4°F to 842°F −4°F to 1022°F −20°C to 550°C (−4°F to 1022°F) −20°C to 550°C (−4°F to 1022°F) −4°F to 1022°F
Field of View (FOV) 44° × 33° 25° × 19° 49° × 37° 49° × 37° 25° × 19° 60° × 45° 60° × 45° 25° × 19°
Thermal Sensitivity (NETD) 40 mK 50 mK 40 mK @ 30°C 40 mK 40 mK <35 mK @ 30°C <35 mK @ 30°C 40 mK @ 30°C
Focus Mode TurboFocus TurboFocus Focus-free Focus-free Manual Focus-free Focus-free Manual
Display Size 5" 5" 3.5-inch touchscreen 3.5" 3.5" Uses phone screen Uses phone screen 3.5-inch touchscreen
Digital Camera 8 MP 8 MP 8 MP 5 MP 5 MP Via phone Via phone 8 MP

FAQ

FAQ

Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.

View All Support Resources
Will Ti4 tell me what is wrong, or just show a hot spot?
  • It helps narrow down the problem: See which connection, motor, or bearing is warmer than surrounding or comparable components.
  • It supports your next decision: Use the pattern to decide where to inspect, test, or monitor more closely.
  • It does not diagnose the cause by itself: A hot area may have several explanations. Operating load, equipment condition, and follow-up checks still matter.
Can it help me find where my home is losing heat without opening walls?
  • Start with a non-invasive check: Scan accessible walls, ceilings, and areas around windows for uneven surface temperatures that may suggest insulation gaps or air leakage.
  • Choose useful conditions: Heat-loss patterns are generally easier to see when indoor and outdoor temperatures differ.
  • Know its limits: Ti4 cannot see through walls or confirm what is inside them. It helps you choose where further investigation may be worthwhile.
Is Ti4 worth choosing over a simpler, focus-free thermal camera?
  • Choose Ti4 if you need more control: Autofocus and manual focus are useful when you regularly inspect targets at different distances.
  • Choose it for detailed comparisons: On-camera measurement tools and annotations help when you need to compare components and document your reasoning.
  • A simpler camera may be enough: If you mainly want occasional household scans to spot obvious hot or cold areas, you may not need Ti4’s additional controls.
Can I use it confidently if I am new to thermal imaging?
  • Getting an image is straightforward: Autofocus helps you obtain a clear view without manually adjusting every shot.
  • Start with comparisons: Compare similar components under similar conditions instead of assuming every bright area is a fault.
  • Allow time to learn measurement basics: Surface emissivity, reflections, distance, and focus affect readings. Shiny metal is particularly easy to misinterpret.
Will it show small components clearly from where I need to stand?
  • It depends on size and distance: The farther away you are, the fewer thermal pixels a small component occupies.
  • Focus is only part of the answer: Ti4’s 320 × 240 detector and adjustable focus help capture detail, but a visible target is not automatically large enough for an accurate temperature reading.
  • Check your actual inspection needs: Before buying for small parts or distant equipment, provide the target dimensions and working distance so suitability can be assessed.
Can I use the results to explain a repair to a customer or technician?
  • Show the area of concern: Save thermal images and add annotations identifying the equipment and what you observed.
  • Make comparisons meaningful: Record operating conditions and compare similar components so the temperature difference has context.
  • Support the discussion: A clear visual record helps explain why further inspection is recommended, without presenting the image alone as proof that a component must be replaced.
